-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 40 pages per minute
Letter 42 pages per minute
2-Sided 33 images per minute (A4) / 35 images per minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 14s
First Print Out Time (FPOT) (Approx.)
A4 5s
Recovery Time (From Sleep Mode) 4s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)
Supported File Format for USB Direct Print JPEG, TIFF, PDF

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Multi-Purpose Tray 100 sheets
Optional
Paper Feeder 550 sheets
Maximum 900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m2) 150 sheets
Media Size

Cassette / Paper Feeder

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal,
Custom (min. 105 x 148 mm to max. 216 x 355.6 mm)

Multi-Purpose Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5),
Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (min. 210 x 279.4 mm to max. 216 x 355.6 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Cassette / Paper Feeder

60 - 120 g/m²

Multi-Purpose Tray

60 - 199 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

Access Point Mode: WPA2-PSK (AES)
Mobile/Cloud Printing Solutions Canon PRINT Business app, Canon Print Service (Android), AirPrint, Mopria, Microsoft Universal Print
Operating System Compatibility*1 Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS

Other Features

Department ID, Secure Print, Application Library

Software Included Printer Driver, Toner Status

General

Device Memory 1 GB
Display 12.7 cm Color Touchscreen
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation 480 W (max. 1,250 W)
Standby 6 W
Sleep 0.9 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*2 80,000 pages
Dimensions (W x D x H) (Approx.) 438 x 373 x 312 mm
Weight*3 (Approx.) 9.1 kg
Toner Cartridge*4
Standard Cartridge 070: 3,000 Prints (Bundled: 3,000 Prints)
High Cartridge 070H: 10,200 Prints

Optional Accessories

Paper Feeder Cassette Feeding Unit-AH1 (550 sheets)
Barcode Printing Barcode Printing Kit-E1E
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 40 pages per minute
Letter 42 pages per minute
2-Sided 33 images per minute (A4) / 35 images per minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 14s
First Print Out Time (FPOT) (Approx.)
A4 5s
Recovery Time (From Sleep Mode) 4s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Multi-Purpose Tray 100 sheets
Optional
Paper Feeder 550 sheets
Maximum 900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m²) 150 sheets
Media Size

Cassette / Paper Feeder

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal,
Custom (min. 105 x 148 mm to max. 216 x 355.6 mm)

Multi-Purpose Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5),
Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (min. 210 x 279.4 mm to max. 216 x 355.6 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Cassette / Paper Feeder

60 - 120 g/m²

Multi-Purpose Tray

60 - 199 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

Access Point Mode: WPA2-PSK (AES)
Mobile/Cloud Printing Solutions Canon PRINT Business app, Canon Print Service (Android), AirPrint, Mopria, Microsoft Universal Print
Operating System Compatibility*1 Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS
Other Features

Department ID, Secure Print

Software Included Printer Driver, Toner Status

General

Device Memory 1 GB
Display 6.9 cm LCD
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation 480 W (max. 1,250 W)
Standby 6 W
Sleep 0.9 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*2 80,000 pages
Dimensions (W x D x H) (Approx.) 399 x 373 x 249 mm
Weight*3 (Approx.) 8.7 kg
Toner Cartridge*4
Standard Cartridge 070: 3,000 Prints (Bundled: 3,000 Prints)
High Cartridge 070H: 10,200 Prints

Optional Accessories

Paper Feeder Cassette Feeding Unit-AH1 (550 sheets)
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 36 Pages per minute
Letter 37 Pages per minute
2-Sided 30 Images per minute (A4) / 31 Images per minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 14s
First Print Out Time (FPOT) (Approx.)
A4 5s
Recovery Time (From Sleep Mode) 4s or less
Print Language UFR II, PCL 6
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Multi-Purpose Tray 100 sheets
Optional
Paper Feeder 550 sheets
Maximum 900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m2) 150 sheets
Media Size

Cassette / Paper Feeder

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal,
Custom (min. 105 x 148 mm to max. 216 x 355.6 mm)

Multi-Purpose Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5),
Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (min. 210 x 279.4 mm to max. 216 x 355.6 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Cassette / Paper Feeder

60 - 120 g/m²

Multi-Purpose Tray

60 - 199 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

Access Point Mode: WPA2-PSK (AES)
Mobile/Cloud Printing Solutions Canon PRINT Business app, Canon Print Service (Android), AirPrint, Mopria, Microsoft Universal Print
Operating System Compatibility*1 Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS
Other Features

Department ID

Software Included Printer Driver, Toner Status

General

Device Memory 1 GB
Display 6.9 cm LCD Display
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation 480 W (max. 1,250 W)
Standby 6 W
Sleep 0.9 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*2 80,000 pages
Dimensions (W x D x H) (Approx.) 399 x 373 x 249 mm
Weight*3 (Approx.) 8.7 kg
Toner Cartridge*4
Standard Cartridge 070: 3,000 Prints (Bundled: 1,500 Prints)
High Cartridge 070H: 10,200 Prints



-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 36 pages per minute
Letter 37 pages per minute
2-Sided 30 images per minute (A4) / 31 images per minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 14s
First Print Out Time (FPOT) (Approx.)
A4 5s
Recovery Time (From Sleep Mode) 4s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Supported File Format for USB Direct Print

JPEG, TIFF, PDF

Copy

Copy Speed
A4 36 pages per minute
Copy Resolution 600 x 600 dpi
First Copy Out Time (FCOT) (Approx.)
Platen Glass
A4 6.1s
First Copy Out Time (FCOT) (Approx.)
ADF
A4 6.1s
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Up to 600 x 600 dpi
Driver Enhanced Up to 9,600 x 9,600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216 x 297 mm
Auto Document Feeder Up to 216 x 356 mm
Scan Speed *1
Platen Glass 1.9s or less
Auto Document Feeder 1-Sided: 50 images per minute (mono), 40 images per minute (colour)
2-Sided: 100 images per minute (mono), 80 images per minute (colour)
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Send

Send Method

SMB, Email, FTP

Colour Mode

Full Colour, Greyscale, Monochrome

Scan Resolution

300 x 600 dpi

File Format

JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Manual Feed Tray 100 sheets
Auto Document Feeder 50 Sheets Duplex, Single Pass
Optional
Paper Feeder 550 sheets
Maximum 900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m²) 150 sheets
Media Size

Paper Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76 x 127 mm to max. 216 x 356 mm)

Auto Document Feeder

A4, B5, A5, B6, Letter, Legal
(min. 148 x 105 mm to max. 216 x 356 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (min. 210 x 279 mm to max. 216 x 356 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Paper Tray

60 - 163 g/m²

Auto Document Feeder

50 - 105 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
Scan Email, SMB, WSD-Scan (IPv4, IPv6), FTP
TCP/IP Application Services Bonjour (mDNS), DHCP, BOOTP, RARP,
Auto IP (IPv4), DHCPv6 (IPv6)
Management SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

Access Point Mode: WPA2-PSK (AES)
Mobile/Cloud Printing Solutions Canon PRINT Business app, Canon Print Service (Android), AirPrint, Mopria, Microsoft Universal Print
Operating System Compatibility*3 Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS

Other Features

Department ID, Secure Print, Skip Blank Page, Application Library

Software Included Printer Driver, Scanner Driver, MF Scan Utility, Toner Status

General

Device Memory 1 GB
Display 12.7 cm LCD Touchscreen
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption
Operation 480 W (max. 1,280 W)
Standby 8 W
Sleep 0.9 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*4 80,000 pages
Dimensions (W x D x H) 420 x 460 x 375 mm
Weight*5 15.6 kg
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 40 pages per minute
Letter 42 pages per minute
2-Sided 33 images per minute (A4) / 35 images per minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 14s
First Print Out Time (FPOT) (Approx.)
A4 5s
Recovery Time (From Sleep Mode) 4s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)
Supported File Format for USB Direct Print JPEG, TIFF, PDF

Copy

Copy Speed
A4 40 pages per minute
Copy Resolution 600 x 600 dpi
First Copy Out Time (FCOT) (Approx.)
Platen Glass
A4 6.1s
First Copy Out Time (FCOT) (Approx.)
ADF
A4 6.1s
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Up to 600 x 600 dpi
Driver Enhanced Up to 9,600 x 9,600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216 x 297 mm
Auto Document Feeder Up to 216 x 356 mm
Scan Speed *1
Platen Glass 1.9s or less
Auto Document Feeder 1-Sided: 50 images per minute (mono), 40 images per minute (colour)
2-Sided: 100 images per minute (mono), 80 images per minute (colour)
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Send

Send Method

SMB, Email, FTP, iFAX Simple

Colour Mode

Full Colour, Greyscale, Monochrome

Scan Resolution

300 x 600 dpi

File Format

JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Fax

Modem Speed

Up to 33.6 Kbps (Up to 3 s/page)

Fax Resolution

Up to 200 x 400 dpi

Compression Method

MH, MR, MMR, JBIG

Memory Capacity *2

Up to 256 pages

Speed Dials

Up to 104 dials

Group Dials / Destinations

Max. 103 dials / Max. 50 destinations in one group

Sequential Broadcast

Max. 114 destinations

Receive Mode

Fax only, Fax/Tel Auto Switch, Answer Mode, Manual

Memory Backup

Permanent fax memory backup

Fax Features

Fax Forwarding, Remote Reception, PC Fax (Transmit only) DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Manual Feed Tray 100 sheets
Auto Document Feeder 50 Sheets Duplex, Single Pass
Optional
Paper Feeder 550 sheets
Maximum 900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m²) 150 sheets
Media Size

Paper Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76 x 127 mm to max. 216 x 356 mm)

Auto Document Feeder

A4, B5, A5, B6, Letter, Legal
(min. 148 x 105 mm to max. 216 x 356 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (min. 210 x 279 mm to max. 216 x 356 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Paper Tray

60 - 163 g/m²

Auto Document Feeder

50 - 105 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
Scan Email, SMB, WSD-Scan (IPv4, IPv6), FTP
TCP/IP Application Services Bonjour (mDNS), DHCP, BOOTP, RARP,
Auto IP (IPv4), DHCPv6 (IPv6)
Management SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

Access Point Mode: WPA2-PSK (AES)
Mobile/Cloud Printing Solutions Canon PRINT Business app, Canon Print Service (Android), AirPrint, Mopria, Microsoft Universal Print
Operating System Compatibility*3 Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS
Other Features Department ID, Secure Print, Skip Blank Page, Application Library
Software Included Printer Driver, Fax Driver, Scanner Driver, MF Scan Utility, Toner Status

General

Device Memory 1 GB
Display 12.7 cm LCD Touchscreen with vari-angle
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption
Operation 480 W (max. 1,280 W)
Standby 8 W
Sleep 0.9 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*4 80,000 pages
Dimensions (W x D x H) 420 x 460 x 375 mm
Weight*5 15.6 kg
Toner Cartridge*6
Standard Cartridge 070: 3,000 Prints (Bundled: 3,000 Prints)
High Cartridge 070H: 10,200 Prints



-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 40 pages per minute
Letter 42 pages per minute
2-Sided 33 images per minute (A4) / 35 images per minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 14s
First Print Out Time (FPOT) (Approx.)
A4 5s
Recovery Time (From Sleep Mode) 4s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)
Supported File Format for USB Direct Print JPEG, TIFF, PDF

Copy

Copy Speed
A4 40 pages per minute
Copy Resolution 600 x 600 dpi
First Copy Out Time (FCOT) (Approx.)
Platen Glass
A4 6.1s
First Copy Out Time (FCOT) (Approx.)
ADF
A4 6.1s
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Up to 600 x 600 dpi
Driver Enhanced Up to 9,600 x 9,600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216 x 297 mm
Auto Document Feeder Up to 216 x 356 mm
Scan Speed *1
Platen Glass 1.9s or less
Auto Document Feeder 1-Sided: 50 images per minute (mono), 40 images per minute (colour)
2-Sided: 100 images per minute (mono), 80 images per minute (colour)
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Send

Send Method

SMB, Email, FTP, iFAX Simple

Colour Mode

Full Colour, Greyscale, Monochrome

Scan Resolution

300 x 600 dpi

File Format

JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Fax

Modem Speed

Up to 33.6 Kbps (Up to 3 s/page)

Fax Resolution

Up to 200 x 400 dpi

Compression Method

MH, MR, MMR, JBIG

Memory Capacity *2

Up to 256 pages

Speed Dials

Up to 104 dials

Group Dials / Destinations

Max. 103 dials / Max. 50 destinations in one group

Sequential Broadcast

Max. 114 destinations

Receive Mode

Fax only, Fax/Tel Auto Switch, Answer Mode, Manual

Memory Backup

Permanent fax memory backup

Fax Features

Fax Forwarding, Remote Reception, PC Fax (Transmit only) DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Manual Feed Tray 100 sheets
Auto Document Feeder 50 Sheets Duplex, Single Pass
Optional
Paper Feeder 550 sheets
Maximum 900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m²) 150 sheets
Media Size

Paper Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76 x 127 mm to max. 216 x 356 mm)

Auto Document Feeder

A4, B5, A5, B6, Letter, Legal
(min. 148 x 105 mm to max. 216 x 356 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (min. 210 x 279 mm to max. 216 x 356 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Paper Tray

60 - 163 g/m²

Auto Document Feeder

50 - 105 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
Scan Email, SMB, WSD-Scan (IPv4, IPv6), FTP
TCP/IP Application Services Bonjour (mDNS), DHCP, BOOTP, RARP,
Auto IP (IPv4), DHCPv6 (IPv6)
Management SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

Access Point Mode: WPA2-PSK (AES)
Mobile/Cloud Printing Solutions Canon PRINT Business app, Canon Print Service (Android), AirPrint, Mopria, Microsoft Universal Print
Operating System Compatibility*3 Windows 10/11, Windows Server 2012/2012 R2/2016/2019/2022, macOS 10.13 or later, Linux, Chrome OS
Other Features Department ID, Secure Print, Skip Blank Page, Application Library
Software Included Printer Driver, Fax Driver, Scanner Driver, MF Scan Utility, Toner Status

General

Device Memory 1 GB
Display 12.7 cm LCD Touchscreen with vari-angle
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption
Operation 480 W (max. 1,280 W)
Standby 8 W
Sleep 0.9 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*4 80,000 pages
Dimensions (W x D x H) 420 x 460 x 375 mm
Weight*5 15.6 kg
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 30 pages per minute
Letter 30 pages per minute
A3 15 pages per minute
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 40s
First Print Out Time (FPOT) (Approx.)
A4 6.3s
Recovery Time (From Sleep Mode) 5s or less
Print Language UFR II LT
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Paper Handling

Input Tray Capacity
(Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Multi-purpose Tray 100 sheets
Optional
Paper Feeder 550 sheets (x3)
Maximum 2,000 sheets
(Standard + 3 Paper Feeders)
Output Tray Capacity
(Plain Paper, 80 g/m²)
250 sheets
Media Size

Cassette / Paper Feeder

A3, A4, A5, B5, B6, Legal, Letter, Executive, Statement, Foolscap, Custom (min. 85 x 148 mm to max. 297 x 431.8 mm)

Multi-purpose Tray

A3, A4, A5, B4, B5, Legal, Letter, Executive, Statement, Foolscap, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 312 to 1,200 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Standard Cassette / Paper Feeder

60 - 120 g/m²

Multi-Purpose Tray

60 - 199 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
TCP/IP Application Services Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management SNMPv1, SNMPv3 (IPv4, IPv6)
Network Security
Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1X, IPSEC, TLS 1.3, Dual Network Support
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES), IEEE802.1X
Access Point Mode: WPA2-PSK (AES)
Other Features Department ID, Forced Hold Printing, Secure Print
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Compatible Operating Systems*1 Windows®, Windows Server®, Mac® OS, Linux, Chrome OS
Software Included Printer Driver, Toner Status

General

Device Memory 2 GB
Display 6.9 cm LCD
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation 650 W (max. 1,380 W)
Standby 30 W
Sleep 1.2 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*2 100,000 pages
Dimensions (W x D x H) (Approx.) 484 x 458 x 297 mm
Weight*3 (Approx.) 20.8 kg
Toner Cartridge*4
Standard Cartridge 062: 11,000 Prints
(Bundled: 6,400 Prints)
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed
A4 43 pages per minute
Letter 43 pages per minute
2-Sided 43 pages per minute (A4) or 21.5 sheets per minute
A3 22 pages per minute
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On) 40s
First Print Out Time (FPOT) (Approx.)
A4 6.3s
Recovery Time (From Sleep Mode) 5s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)
Supported File Format for USB Direct Print JPEG, TIFF, PDF, XPS

Paper Handling

Input Tray Capacity
(Plain Paper, 80 g/m²)
Standard
Cassette 250 sheets
Multi-purpose Tray 100 sheets
Optional
Paper Feeder 550 sheets (x3)
Maximum 2,000 sheets
(Standard + 3 Paper Feeders)
Output Tray Capacity
(Plain Paper, 80 g/m²)
250 sheets
Media Size

Cassette / Paper Feeder

A3, A4, A5, B4, B5, Legal, Letter, Executive, Statement, Foolscap, Custom (min. 85 x 148 mm to max. 297 x 431.8 mm)

Multi-purpose Tray

A3, A4, A5, B4, B5, Legal, Letter, Executive, Statement, Foolscap, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 312 to 1,200 mm)

2-Sided Printing

A3, A4, A5, B5, Legal, Letter, Executive, Foolscap

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Standard Cassette / Paper Feeder

60 - 120 g/m²

Multi-Purpose Tray

60 - 199 g/m²

2-Sided Printing

60 - 120 g/m²

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
TCP/IP Application Services Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management SNMPv1, SNMPv3 (IPv4, IPv6)
Network Security
Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1X, IPSEC, TLS 1.3, Dual Network Support
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES), IEEE802.1X
Access Point Mode: WPA2-PSK (AES)
Other Features Department ID, Forced Hold Printing, Secure Print
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Compatible Operating Systems*1 Windows®, Windows Server®, Mac® OS, Linux, Chrome OS
Software Included Printer Driver, Toner Status

General

Device Memory 2 GB
Display 6.9 cm LCD
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation 700 W (max. 1,380 W)
Standby 30 W
Sleep 1.2 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*2 100,000 pages
Dimensions (W x D x H) (Approx.) 484 x 565 x 297 mm
Weight*3 (Approx.) 25.5 kg
Toner Cartridge*4
Standard Cartridge 062: 11,000 Prints
(Bundled: 6,400 Prints )
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed *1
A4 29 pages/minute
Letter 30 pages/minute
2-Sided 18 pages/minute (A4) / 19 pages/minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 2,400 (equivalent) x 600 dpi
Warm-Up Time (From Power On) 7.5s
First Print Out Time (FPOT) *1 (Approx.)
A4  5.4s
Recovery Time (From Sleep Mode) 3.2s
Print Language UFR II
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Copy

Copy Speed *1
A4 29 pages/minute
Copy Resolution 600 × 600 dpi
First Copy Out Time (FCOT) (Approx.)
Platen Glass
A4 7.6s
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Up to 600 x 600 dpi
Driver Enhanced Up to 9,600 x 9,600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216 x 297 mm
Scan Speed *2
Platen Glass 3.5s or less
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Paper Handling

Input Tray Capacity
(Plain Paper, 80 g/m² (gsm))
Standard
Paper Tray 150 sheets
Output Tray Capacity
(Plain Paper, 80 g/m² (gsm))
100 sheets
Media Size

Paper Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5),
Custom (Minimum 76 x 127 mm to Maximum 216 x 356 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (minimum 210 x 279 mm to maximum 216 x 356 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Paper Tray

60 - 163 g/m² (gsm)

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
TCP/IP Application Services Bonjour(mDNS), DHCP, BOOTP, RARP,
Auto IP (IPv4), DHCPv6 (IPv6)
Management SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, TLS 1.3
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Compatible Operating Systems*3 Windows®, Windows Server®, Mac® OS, Linux, Chrome OS
Software Included Printer Driver, Scanner Driver, MF Scan Utility, Toner Status

General

Device Memory 256 MB
Display 5.3cm (5-Line) LCD
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation 530 W (maximum 1,300 W)
Standby 5.8 W
Sleep 1.0 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*4 20,000 prints
Dimensions (W x D x H) (Approx.) 372 x 320 x 271 mm
Weight*5 (Approx.) 8.6 kg
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed *1
A4 29 pages/minute
Letter 30 pages/minute
2-Sided 18 pages/minute (A4) / 19 pages/minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 2,400 (equivalent) x 600 dpi
Warm-Up Time (From Power On) 7.5s
First Print Out Time (FPOT) *1 (Approx.)
A4 5.4s
Recovery Time (From Sleep Mode) 3.2s
Print Language UFR II
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Copy

Copy Speed *1
A4 29 pages/minute
Copy Resolution 600 × 600 dpi
First Copy Out Time (FCOT) (Approx.)
Platen Glass
A4 7.6s
First Copy Out Time (FCOT) (Approx.)
ADF
A4 8.9s
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Up to 600 x 600 dpi
Driver Enhanced Up to 9,600 x 9,600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216 x 297 mm
Auto Document Feeder Up to 216 x 356 mm
Scan Speed *2
Platen Glass 3.5s or less
Auto Document Feeder 20 images/minute (mono), 15 images/minute (colour)
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Fax

Modem Speed

Up to 33.6 Kbps (Up to 3s/page)

Fax Resolution

Up to 200 x 400 dpi

Compression Method

MH, MR, MMR, JBIG

Memory Capacity *3

Up to 256 pages

Speed Dials

Up to 104 dials

Group Dials / Destinations

Maximum 103 dials / Maximum 50 destinations in one group

Sequential Broadcast

Maximum 114 destinations

Receive Mode

Fax only, Fax/Tel Auto Switch, Answer Mode, Manual

Memory Backup

Permanent fax memory backup

Fax Features

Fax Forwarding, Remote Reception, PC Fax (Transmit only) DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports

Paper Handling

Input Tray Capacity
(Plain Paper, 80 g/m² (gsm))
Standard
Paper Tray 150 sheets
Auto Document Feeder 35 sheets
Output Tray Capacity
(Plain Paper, 80 g/m² (gsm))
100 sheets
Media Size

Paper Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5),
Custom (minimum 76 x 127 mm to maximum 216 x 356 mm)

Auto Document Feeder

A4, B5, A5, B6, Letter, Legal
(minimum 148 x 105 mm to maximum 216 x 356 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (minimum 210 x 279 mm to maximum 216 x 356 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Paper Tray

60 - 163 g/m² (gsm)

Auto Document Feeder

50 - 105 g/m² (gsm)

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX
Wireless Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
TCP/IP Application Services Bonjour(mDNS), DHCP, BOOTP, RARP,
Auto IP (IPv4), DHCPv6 (IPv6)
Management SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)
Access Point Mode: WPA2-PSK (AES)
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Compatible Operating Systems*4 Windows®, Windows Server®, Mac® OS, Linux, Chrome OS
Software Included Printer Driver, Fax Driver, Scanner Driver, MF Scan Utility, Toner Status

General

Device Memory 256 MB
Display 9.3cm (6-Line) LCD Touchscreen
Power Requirements AC 220 - 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation 530 W (maximum 1,300 W)
Standby 5.8 W
Sleep 1.0 W
Operating Environment
Temperature 10 - 30°C
Humidity 20 - 80% RH (no condensation)
Monthly Duty Cycle*5 20,000 prints
Dimensions (W x D x H) (Approx.) 390 x 374 x 368 mm
Weight*6 (Approx.) 11 kg
Toner Cartridge*7
Standard Cartridge 071: 1,200 prints (Bundled: 700 pages)
High Cartridge 071H : 2,500 prints
-10%
Printing Method Monochrome Laser Beam Printing
Print Speed *1
A4 29 pages/minute
Letter 30 pages/minute
2-Sided 18 pages/minute (A4) / 19 pages/minute (Letter)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 2,400 (equivalent) x 600 dpi
Warm-Up Time (From Power On) 7.5s
First Print Out Time (FPOT) *1 (Approx.)
A4 5.4s
Recovery Time (From Sleep Mode) 3.2s
Print Language UFR II
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Copy

Copy Speed *1
A4 29 pages/minute
Copy Resolution 600 × 600 dpi
First Copy Out Time (FCOT) (Approx.)
Platen Glass
A4 7.6s
First Copy Out Time (FCOT) (Approx.)
ADF
A4 8.9s
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Up to 600 x 600 dpi
Driver Enhanced Up to 9,600 x 9,600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216 x 297 mm
Auto Document Feeder Up to 216 x 356 mm
Scan Speed *2
Platen Glass 3.5s or less
Auto Document Feeder 20 images/minute (ipm) (mono), 15 images/minute (ipm) (colour)
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Fax

Modem Speed

Up to 33.6 Kbps (Up to 3s/page)

Fax Resolution

Up to 200 x 400 dpi

Compression Method

MH, MR, MMR, JBIG

Memory Capacity *3

Up to 256 pages

Speed Dials

Up to 104 dials

Group Dials / Destinations

Maximum 103 dials / Maximum 50 destinations in one group

Sequential Broadcast

Maximum 114 destinations

Receive Mode

Fax only, Fax/Tel Auto Switch, Answer Mode, Manual

Memory Backup

Permanent fax memory backup

Fax Features

Fax Forwarding, Remote Reception, PC Fax (Transmit only) DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports

Paper Handling

Input Tray Capacity
(Plain Paper, 80 g/m² (gsm))
Standard
Paper Tray 150 sheets
Auto Document Feeder 35 sheets
Output Tray Capacity
(Plain Paper, 80 g/m² (gsm))
100 sheets
Media Size

Paper Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5),
Custom (minimum 76 x 127 mm to maximum 216 x 356 mm)

Auto Document Feeder

A4, B5, A5, B6, Letter, Legal
(minimum 148 x 105 mm to maximum 216 x 356 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal,
Custom (minimum 210 x 279 mm to maximum 216 x 356 mm)

Media Type Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight

Paper Tray

60 - 163 g/m² (gsm)

Auto Document Feeder

50 - 105 g/m² (gsm)

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
TCP/IP Application Services Bonjour(mDNS), DHCP, BOOTP, RARP,
Auto IP (IPv4), DHCPv6 (IPv6)
Management SNMP v1/v3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, TLS 1.3
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Compatible Operating Systems*4 Windows®, Windows Server®, Mac® OS, Linux, Chrome OS
Software Included Printer Driver, Fax Driver, Scanner Driver, MF Scan Utility, Toner Status
-10%

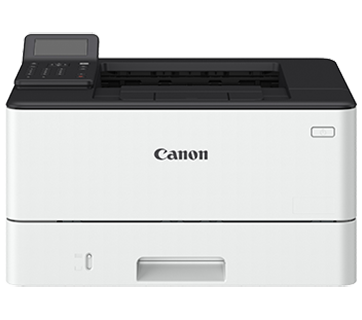

Printing Method

Monochrome Laser Beam Printing

Print Speed *1

A4

29 pages/minute

Letter

30 pages/minute

2-Sided

18 pages/minute (A4) / 19 pages/minute (Letter)

Print Resolution

600 x 600 dpi

Print Quality with Image Refinement Technology

2 400 (equivalent) x 600 dpi

Warm-Up Time (From Power On)

7.5s

First Print Out Time (FPOT) *1 (Approx.)

A4

5.4s

Recovery Time (From Sleep Mode)

3.2s or less

Print Language

UFR II

Auto Duplex Print

Yes

Print Margins

Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m² (gsm))

Standard

Paper Tray

150 sheets

Output Tray Capacity (Plain Paper, 80 g/m² (gsm))

100 sheets

Media Size

Paper Tray

A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5),
Custom (minimum 76 x 127 mm to maximum 216 x 356 mm)

2-Sided Printing

A4, Legal, Letter, Foolscap, Indian Legal

Media Type

Plain Paper, Recycled Paper, Label, Postcard, Envelope

Media Weight

Paper Tray

60 - 163 g/m² (gsm)

2-Sided Printing

60 - 105 g/m² (gsm)

Connectivity & Software

Standard Interfaces

Wired

USB 2.0 High Speed, 10Base-T/100Base-TX

Wireless

Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)

Network Protocol

Print

LPD, RAW, WSD-Print (IPv4, IPv6)

Network Security

Wired

IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, TLS 1.3

Wireless

Infrastructure Mode: WEP (64/128 bit),
WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES),
WPA-EAP (AES), WPA2-EAP (AES)
Access Point Mode: WPA2-PSK (AES)

Mobile Solution

Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print

Compatible Operating Systems*2

Windows®, Windows Server®, Mac® OS, Linux, Chrome OS

Software Included

Printer Driver, Toner Status

General

Device Memory

256 MB

Display

5.3cm (5-Line) LCD

Power Requirements

AC 220 - 240 V, 50/60 Hz

Power Consumption (Approx.)

Operation

530 W (maximum 1 300 W)

Standby

3.5 W

Sleep

1.0 W

Operating Environment

Temperature

10 - 30°C

Humidity

20 - 80% RH (no condensation)

Monthly Duty Cycle*3

20 000 pages

Dimensions (W x D x H) (Approx.)

356 x 283 x 213 mm

Weight*4 (Approx.)

5.6 kg

Toner Cartridge*5

Standard

Cartridge 071: 1 200 prints (Bundled: 700 pages)

High

Cartridge 071H : 2 500 prints

-10%

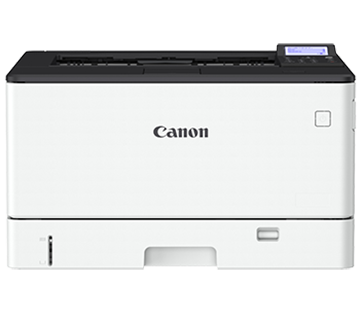

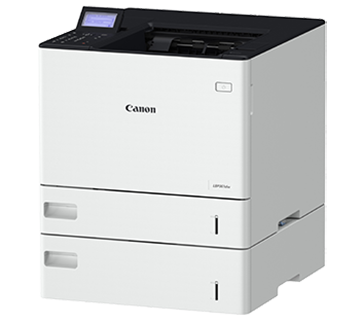

Printing Method

Monochrome Laser Beam Printing

Print Speed

A4

61 pages per minute (ppm)

Letter

65 pages per minute (ppm)

2-Sided

50 images per minute (ipm) (A4) / 53 images per minute (ipm) (Letter)

Print Resolution

600 x 600 dpi

Print Quality with Image Refinement Technology

1 200 x 1 200 dpi (Equivalent)

Warm-Up Time (From Power On)

22s

First Print Out Time (FPOT) (Approx.)

A4

4.9s

Letter

4.9s

Recovery Time (From Sleep Mode)

2.0s or less

Print Language

UFR II, PCL 6, Adobe® PostScript® 3™

Auto Duplex Print

Yes

Print Margins

Top/Bottom/Left/Right margin: 5 mm
Top/Bottom/Left/Right margin: 10 mm (Envelope)

Supported File Format for USB Direct Print

JPEG, TIFF, PDF, XPS

Paper Handling

Input Tray Capacity (Plain Paper, 80 g/m2)

Standard

Cassette

550 sheets

Multi-Purpose Tray

100 sheets

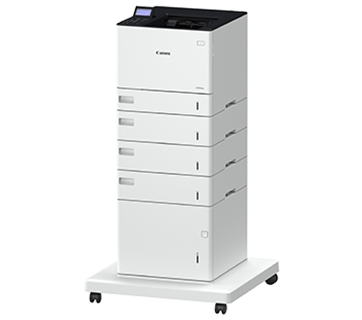

Optional

Paper Feeder

550 sheets (x3)

Paper Deck

2 000 sheets (x1)

Maximum

4 300 sheets (Standard + 3 Paper Feeders + 1 Paper Deck)

Output Tray Capacity (Plain Paper, 80 g/m2)

500 sheets

Media Size

Cassette / Paper Feeder

A4, A5, A6, B5, B6, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal
Custom (min. 99.0 x 148.0 mm to max. 216.0 x 355.6 mm)

Multi-Purpose Tray

A4, A5, A6, B5, B6, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Envelope (COM10, Monarch, DL, C5)
Custom (min. 76.2 x 127.0 mm to max. 216 to 355.6 mm)

Paper Deck

A4, Legal, Letter

2-Sided Printing

A4, A5, B5, Legal, Letter, Executive, Foolscap, Government Letter, Government Legal, Indian Legal

Media Type

Plain Paper, Recycled Paper, Colour Paper, Label, Postcard, Envelope

Media Weight

Standard Cassette / Paper Feeder / Paper Deck

60 - 135 g/m2

Multi-Purpose Tray

60 - 199 g/m2

2-Sided Printing

60 - 120 g/m2

Connectivity & Software

Standard Interfaces

Wired

USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T

Wireless

Wi-Fi 802.11b/g/n
(Infrastructure Mode, WPS, Direct Connection)

Network Protocol

Print

TCP/IP
(LPD/RAW/IPP/IPPS/FTP/WSD)

TCP/IP Application Services

Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, Auto IP, WINS (IPv4), DHCPv6 (IPv6)

Management

SNMPv1, SNMPv3 (IPv4, IPv6)

Network Security

Wired

IP/Mac address filtering, SSL (HTTPS, IPPS), SNMPv3, IEEE802.1X, IPsec, TLS 1.3, Dual Network Support

Wireless

Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES), IEEE802.1X
Access Point Mode: WPA2-PSK (AES)

Other Features

Department ID, Forced Hold Printing, Secure Print

Mobile Solution

Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print

Compatible Operating Systems*1

Windows®, Windows Server®, Mac® OS, Linux

Software Included

Printer Driver, Toner Status

General

Device Memory

2 GB

Display

6.9cm (5-Line) LCD with Vari-Angle

Power Requirements

AC 220 - 240 V, 50/60 Hz

Power Consumption (Approx.)

Operation

772 W (Max. 1 500 W)

Standby

13.7 W

Sleep

1.0 W

Operating Environment

Temperature

10 - 30°C

Humidity

20% - 80% RH (no condensation)

Monthly Duty Cycle*2

275,000 pages

Dimensions (W x D x H) (Approx.)

430 x 465 x 370 mm

Weight*3 (Approx.)

20 kg

Toner Cartridge*4

Standard

Cartridge 073: 27 000 prints (bundled: 11,500 prints)

-10%

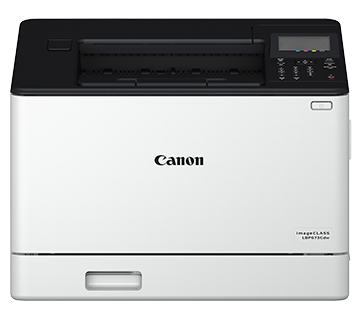

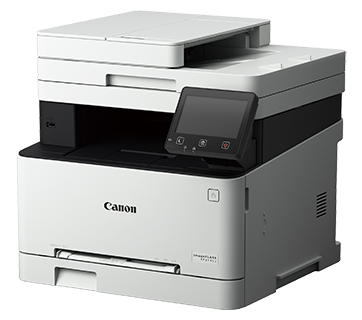

Printing Method Colour Laser Beam Printing
Print Speed
A4 33 / 33 pages per minute (ppm) (Mono / Colour)
Letter 35 / 35 pages per minute (ppm) (Mono / Colour)
2-sided 29 / 29 pages per minute (ppm) (Mono / Colour)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1 200 (eq.) x 1 200 dpi (eq.)
Warm-Up Time (From Power On) 19.4s or less
First Print Out Time (FPOT)
A4 Approx. 7.1 / 7.1s (Mono / Colour)
Letter Approx 7.0 / 7.0s (Mono / Colour)
Recovery Time (From Sleep Mode) 1.7s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right Margin: 5 mm
Top/Bottom/Left/Right Margin: 10 mm (Envelope)
Supported File Format for USB Direct Print JPEG, TIFF, PDF

Paper Handling

Paper Input (Based on 80 g/m²)
Standard Cassette 250 sheets
Multi-Purpose Tray 50 sheets
Optional Paper Feeder 550 sheets
Maximum Paper Input Capacity 850 sheets
Paper Output 150 sheets
Paper Sizes
Standard Cassette A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Envelope (COM10, Monarch, C5, DL)
Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Multi-Purpose Tray A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, C5, DL)
Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm)
Optional Paper Feeder A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Available Paper Size for Auto Duplex Print A4, B5, A5, Letter, Legal, Executive, Foolscap, Indian Legal
Paper Types Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope
Paper Weight
Standard Cassette
/ Optional Paper Feeder
60 to 200 g/m2
Multi-Purpose Tray 60 to 200 g/m2

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
TCP/IP Application Services Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management SNMPv1, SNMPv3 (IPv4, IPv6)
Network Security
Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES), IEEE802.1x
Access Point Mode: WPA2-PSK (AES)
Other Features Department ID, Secure Print, Application Library
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Compatible Operating Systems Windows®, Windows Server®, Mac® OS, Linux*1
Software Included Printer driver, Toner Status

General

Device Memory 1 GB
Display WVGA Colour LCD 12.7cm (5.0in) Touch Screen Display
Dimensions (W x D x H) (Approx.) 425 x 427 x 380 mm
Weight (Approx.) 16.1 kg
Power Consumption
Maximum (Operation) 1,380 W or less
Average (Operation) 700 W
Average (Standby) 24.0 W
Average (Sleep) 1.0 W (USB/Wired/Wireless)
Operating Environment
Temperature 10 - 30°C
Humidity 20% - 80% RH (no condensation)
Power Requirements AC 220 - 240 V (+/-10%), 50/60 Hz (+/-2 Hz)
-10%
Printing Method Colour Laser Beam Printing
Print Speed
A4 33 / 33 pages per minute (ppm) (Mono / Colour)
Letter 35 / 35 pages per minute (ppm) (Mono / Colour)
2-Sided 29 / 29 pages per minute (ppm) (Mono / Colour)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1 200 (eq.) x 1 200 dpi (eq.)
Warm-Up Time (From Power On) 14s or less
First Print Out Time (FPOT) (Approx.)
A4 7.1 / 7.1s (Mono / Colour)
Letter 7.0 / 7.0s (Mono / Colour)
Recovery Time (From Sleep Mode) 5.3s or less
Print Language UFR II, PCL 6
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right Margin: 5 mm
Top/Bottom/Left/Right Margin: 10 mm (Envelope)
Supported File Format for USB Direct Print JPEG, TIFF, PDF

Copy

Copy Speed A4
A4 33 / 33 pages per minute (ppm) (Mono / Colour)
Letter 35 / 35 pages per minute (ppm) (Mono / Colour)
Copy Resolution 600 x 600 dpi
First Copy Out Time (FCOT) (Approx.)
A4 7.6 / 8.8s (Mono / Colour)
Letter 7.4 / 8.6s (Mono / Colour)
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Frame Erase, Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Platen glass: up to 600 x 600 dpi
Feeder: up to 300 x 300 dpi
Driver Enhanced Up to 9 600 x 9 600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216.0 x 297mm
Feeder Up to 216.0 x 355.6mm
Scan Speed*1 1-Sided: 50 images per minute (ipm) (mono), 40 images per minute (ipm) (colour)
2-Sided: 100 images per minute (ipm) (mono), 80 images per minute (ipm) (colour)
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To USB (via USB Host 2.0) Yes
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Send

SEND Method SMB, Email, FTP
Colour Mode Full Colour, Greyscale, Monochrome
Scan Resolution 300 x 600 dpi
File Format JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Paper Handling

Auto Document Feeder (ADF) Duplex ADF: 50 sheets (80 g/m2)
Available Paper Size for ADF A4, B5, A5, A6, Letter, Legal, Statement, Business Card
(min. 48.0 x 85.0 mm to max. 216.0 x 355.6 mm)
Paper Input
(Based on 80 g/m2)
Standard Cassette 250 sheets
Multi-Purpose Tray 50 sheets
Optional Paper Feeder 550 sheets
Maximum Paper Input Capacity 850 sheets
Paper Output 150 sheets
Paper Sizes
Standard Cassette A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Envelope (COM10, Monarch, C5, DL)
Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Multi-Purpose Tray A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, C5, DL)
Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm)
Optional Paper Feeder A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Available Paper Size for Auto Duplex Print A4, B5, A5, Letter, Legal, Executive, Foolscap, Indian Legal
Paper Types Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope
Paper Weight
ADF 50 to 105 g/m2
Standard Cassette /
Optional Paper Feeder
60 to 200 g/m2
Multi-Purpose Tray 60 to 200 g/m2

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
Scan Email, SMB, WSD-Scan (IPv4, IPv6), FTP
TCP/IP Application Services Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management SNMPv1, SNMPv3 (IPv4,IPv6)
Network Security
Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES),
WPA-EAP (AES), WPA2-EAP (AES), IEEE802.1x
Access Point Mode: WPA2-PSK (AES)
Other Features Department ID, Secure Print, Application Library
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Address Book LDAP
Compatible Operating Systems*3 Windows®, Windows Server®, Mac® OS, Linux*4
Software Included Printer driver, Scanner driver, MF Scan Utility, Toner Status

General

Device Memory 1 GB
Display WVGA Colour LCD 5-inch Touch Screen Display
Dimensions (W x D x H) (Approx.) 425 x 461 x 430 mm
Weight (Approx.) 21.7 kg
-10%
Printing Method Colour Laser Beam Printing
Print Speed
A4 33 / 33 pages per minute (ppm) (Mono / Colour)
Letter 35 / 35 pages per minute (ppm) (Mono / Colour)
2-sided 29 / 29 pages per minute (ppm) (Mono / Colour)
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1 200 (eq.) x 1 200 dpi (eq.)
Warm-Up Time (From Power On) 19.4s or less
First Print Out Time (FPOT)
A4 Approx. 7.1 / 7.1s (Mono / Colour)
Letter Approx 7.0 / 7.0s (Mono / Colour)
Recovery Time (From Sleep Mode) 1.7s or less
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Yes
Print Margins Top/Bottom/Left/Right Margin: 5 mm
Top/Bottom/Left/Right Margin: 10 mm (Envelope)
Supported File Format for USB Direct Print JPEG, TIFF, PDF

Paper Handling

Paper Input (Based on 80 g/m²)
Standard Cassette 250 sheets
Multi-Purpose Tray 50 sheets
Optional Paper Feeder 550 sheets
Maximum Paper Input Capacity 850 sheets
Paper Output 150 sheets
Paper Sizes
Standard Cassette A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Envelope (COM10, Monarch, C5, DL)
Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Multi-Purpose Tray A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, C5, DL)
Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm)
Optional Paper Feeder A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Available Paper Size for Auto Duplex Print A4, B5, A5, Letter, Legal, Executive, Foolscap, Indian Legal
Paper Types Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope
Paper Weight
Standard Cassette
/ Optional Paper Feeder
60 to 200 g/m2
Multi-Purpose Tray 60 to 200 g/m2

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure mode, WPS, Direct Connection)
Network Protocol
Print LPD, RAW, WSD-Print (IPv4, IPv6)
TCP/IP Application Services Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management SNMPv1, SNMPv3 (IPv4, IPv6)
Network Security
Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC, TLS 1.3
Wireless Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES), IEEE802.1x
Access Point Mode: WPA2-PSK (AES)
Other Features Department ID, Secure Print
Mobile Solution Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print
Compatible Operating Systems Windows®, Windows Server®, Mac® OS, Linux*1
Software Included Printer driver, Toner Status

General

Device Memory 1 GB
Display 6.9cm (5-line) LCD
Dimensions (W x D x H) (approx.) 425 x 427 x 300 mm
Weight (approx.) 15.5kg
Power Consumption
Maximum (Operation) 1 380 W or less
Average (Operation) 700 W
Average (Standby) 24.0 W
Average (Sleep) 1.0 W (USB/Wired/Wireless)
Operating Environment
Temperature 10 - 30°C
Humidity 20% - 80% RH (no condensation)
Power Requirements AC 220 - 240 V (+/-10%), 50/60 Hz (+/-2 Hz)
-10%

Printing Method

Colour Laser Beam Printing

Print Speed

A4

33 / 33 pages per minute (ppm) (mono / colour)

Letter

35 / 35 pages per minute (ppm) (mono / colour)

2-Sided

29 / 29 pages per minute (ppm) (mono / colour)

Print Resolution

600 x 600 dpi

Print Quality with Image Refinement Technology

1 200 (eq.) x 1 200 dpi (eq.)

Warm-Up Time (From Power On)

14s or less

First Print Out Time (FPOT) (Approx.)

A4

7.1 / 7.1s (mono / colour)

Letter

7.0 / 7.0s (mono / colour)

Recovery Time (From Sleep Mode)

5.3s or less

Print Language

UFR II, PCL 6, Adobe® PostScript® 3™

Auto Duplex Print

Yes

Print Margins

Top/Bottom/Left/Right Margin: 5 mm
Top/Bottom/Left/Right Margin: 10 mm (Envelope)

Supported File Format for USB Direct Print

JPEG, TIFF, PDF

Copy

Copy Speed A4

A4

33 / 33 pages per minute (ppm) (mono / colour)

Letter

35 / 35 pages per minute (ppm) (mono / colour)

Copy Resolution

600 x 600 dpi

First Copy Time (FCOT) (Approx.)
ADF

A4

7.6 / 8.8s (Mono / Colour)

Letter

7.4 / 8.6s (Mono / Colour)

Maximum Number of Copies

Up to 999 copies

Reduce/Enlargement

25 - 400% in 1% increments

Copy Features

Frame Erase, Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution

Optical

Platen glass: up to 600 x 600 dpi
Feeder: up to 300 x 300 dpi

Driver Enhanced

Up to 9 600 x 9 600 dpi

Scan Type

Colour Contact Image Sensor

Maximum Scan Size

Platen glass

Up to 216.0 x 297mm

Feeder

Up to 216.0 x 355.6mm

Scan Speed *1

1-Sided: 50 images per minute (ipm) (mono), 40 images per minute (ipm) (colour)
2-Sided: 100 images per minute (ipm) (mono), 80 images per minute (ipm) (colour)

Colour Depth

24-bit

Pull Scan

Yes, USB and Network

Push Scan (Scan To PC) with MF Scan Utility

Yes, USB and Network

Scan To USB (via USB Host 2.0)

Yes

Scan To Cloud

MF Scan Utility

Scan Driver Compatibility

TWAIN, WIA

Send

SEND Method

SMB, Email, FTP, iFAX

Colour Mode

Full Colour, Grayscale, Monochrome

Scan Resolution

300 x 600 dpi

File Format

JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Fax

Modem Speed

Up to 33.6 Kbps

Fax Resolution

Up to 408 x 392 dpi

Compression Method

MH, MR, MMR, JBIG

Memory Capacity*2

Up to 512 pages

Favourite Dials (In address book)

19 dials

Speed Dial (Coded dials)

Up to 281 dials

Group Dials / Destinations

Max. 299 dials / Max. 299 destinations

Duplex Fax (Transmission)

Yes

Sequential Broadcast

Max. 310 destinations

Receive Mode

Fax Only, Manual, Answering, Fax/Tel Auto Switch

Memory Backup

Permanent fax memory backup (backup with flash memory)

Fax Features

Fax Forwarding, Dual Access, Remote Reception, PC Fax (Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports

Transmission Time

Approx. 2.6s

Paper Handling

Auto Document Feeder (ADF)

Duplex ADF: 50 sheets (80 g/m2)

Available Paper Size for ADF

A4, B5, A5, A6, Letter, Legal, Statement, Business Card
(min. 48.0 x 85.0 mm to max. 216.0 x 355.6 mm)

Paper Input (Based on 80 g/m2)

Standard Cassette

250 sheets

Multi-Purpose Tray

50 sheets

Optional Paper Feeder

550 sheets

Maximum Paper Input Capacity

850 sheets

Paper Output

150 sheets

Paper Sizes

Standard Cassette

A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Envelope (COM10, Monarch, C5, DL)
Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm)

Multi-Purpose Tray

A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, C5, DL)
Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm)

Optional Paper Feeder

A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm)

Available Paper Size for Auto Duplex Print

A4, B5, A5, Letter, Legal, Executive, Foolscap, Indian Legal

Paper Types

Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope

Paper Weight

ADF

50 to 105 g/m2

Standard Cassette / Optional Paper Feeder

60 to 200 g/m2

Multi-Purpose Tray

60 to 200 g/m2

Connectivity & Software

Standard Interfaces

Wired

USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T

Wireless

Wi-Fi 802.11b/g/n
(Infrastructure mode, WPS, Direct Connection)

Network Protocol

Print

LPD, RAW, WSD-Print (IPv4, IPv6)

Scan

Email, SMB, WSD-Scan(IPv4, IPv6), FTP

TCP/IP Application Services

Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)

Management

SNMPv1, SNMPv3 (IPv4, IPv6)

Network Security

Wired

IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC, TLS 1.3

Wireless

Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES), IEEE802.1x
Access Point Mode: WPA2-PSK (AES)

Other Features

Department ID, Secure Print, Application Library

Mobile Solution

Canon PRINT Business, Canon Print Service, Apple® AirPrint®, Mopria® Print Service, Microsoft Universal Print

Address Book

LDAP

Compatible Operating Systems*3

Windows®, Windows Server®, Mac® OS, Linux*4

Software Included

Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status

General

Device Memory

1 GB

Display

WVGA Colour LCD 5-inch Touch Screen Display

Dimensions (W x D x H) (approx.)

425 x 461 x 430 mm

Weight (approx.)

22.0 kg

Power Consumption (approx.)

Maximum (Operation)

1 380 W or less

Average (Operation)

700 W

Average (Standby)

24.0 W

Average (Sleep)

1.0 W (USB/Wired/Wireless)

Operating Environment

Temperature

10 - 30°C

Humidity

20% - 80% RH (No condensation)

Power Requirements

AC 220 - 240 V (+/-10%), 50/60 Hz (+/-2 Hz)





-10%
Printing Method Colour Laser Beam Printing
Print Speed
A4 21ppm / 21ppm (Mono/Colour)
Letter 22ppm / 22ppm (Mono/Colour)
2-Sided 12ppm / 12ppm (Mono / Colour)
Print Resolution 600 x 600dpi
Print Quality with Image Refinement Technology 1 200 × 1 200 dpi (equivalent)
Warm up Time (From Power On) 13s
First Print Out Time (FPOT)
A4 10.4s / 10.5s (Mono / Colour)
Letter 10.3s / 10.3s (Mono / Colour)
Recovery Time (From Sleep Mode) 6.1s
Print Language UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print Standard
Available Paper Size for Auto Duplex Print A4, B5, Letter, Legal, Executive, Foolscap, Indian Legal
Print Margins 5mm - top, bottom, left and right (Envelope: 10mm)
Print Features Poster, Booklet, Watermark, Page Composer, Toner Saver
Supported File Format for USB Direct Print Supported File Format: JPEG, TIFF, PDF

Copy

Copy Speed A4
A4 21ppm / 21ppm (Mono / Colour)
Letter 22ppm / 22ppm (Mono / Colour)
Copy Resolution 600 x 600dpi
First Copy Out Time (FCOT)
A4 11.4s / 13.4s (Mono / Colour)
Letter 11.2s / 13.1s (Mono / Colour)
Maximum Number of Copies 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Frame Erase, Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Platen glass: 600 x 600dpi
Feeder: 300 x 300dpi
Driver Enhanced 9 600 x 9 600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass 216.0 x 297mm
Feeder 216.0 x 355.6mm
Scan Speed*1 1-Sided: 26.1 ipm (mono), 13.3 ipm (colour)
2-Sided: 51.2 ipm (mono), 26.1 ipm (colour)
Colour Depth 24bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To USB (via USB Host 2.0) Yes
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Send

SEND Method SMB, Email, FTP, iFAX Simple
Colour Mode Full Color, Grayscale, Monochrome
Scan Resolution 300 x 600dpi
File Format JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Fax

Modem Speed 33.6Kbps
Fax Resolution 408 x 392dpi
Compression Method MH, MR, MMR, JBIG
Memory Capacity*2 512 pages
Favourite Dials (in address book) 19 dials
Speed Dial (Coded dials) 281 dials
Group dials / Destinations Maximum 299 dials / Maximum 299 destinations
Duplex Fax (Transmission) Yes
Sequential Broadcast Maximum 310 destinations
Receive Mode Fax Only, Manual, Answering, Fax/Tel Auto Switch
Memory Backup Permanent fax memory backup (Backup with flash memory)
Fax Features Fax Forwarding, Dual Access, Remote Reception, PC Fax (Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports
Transmission Time 2.6s

Paper Handling

Auto Document Feeder (ADF) DADF: 50 sheets (80g/m2)
Available Paper Size for DADF A4, B5, A5, Letter, Legal, Statement
(Minimum 128 x 139.7mm to Maximum 216.0 x 355.6mm)
Paper Input
(based on 80g/m2)
Standard Cassette 250 sheets
Multi-Purpose Tray 1 sheet
Optional Paper Feeder N/A
Maximum Paper Input Capacity 251 sheets
Paper Output 100 sheets
Paper Sizes
Cassette A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
Custom (Minimum 76.2 x 127.0mm to Maximum 216.0 x 355.6mm)
Multi-Purpose Tray A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card
Envelope: COM10, Monarch, C5, DL
Custom (Minimum 76.2 x 127.0mm to Maximum 216.0 x 355.6mm)
Optional Paper Feeder N/A
Paper Types Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope
Paper Weight
ADF 50 to 105g/m2
Cassette /
Optional Paper Feeder
60 to 200g/m2
Multi-Purpose Tray 60 to 200g/m2

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure mode, WPS easy Setup, Direct Connection)
Near Field Communication (NFC) N/A
Network Protocol
Print LPD, RAW, WSD-Print (IPv4,IPv6)
Scan Email, SMB, WSD-Scan(IPv4, IPv6), FTP
TCP/IP Application Services Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management SNMPv1, SNMPv3 (IPv4,IPv6)
Network Security
Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSecurity
Wireless WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
One-Push Wireless Configuration Wi-Fi Protected Setup (WPS)
Other Features Department ID, Secure Print, Application Library
Mobile Solution Canon PRINT Business, Canon Print Service, Google Cloud Print™, Apple® AirPrint®, Mopria® Print Service
Address Book LDAP
Compatible Operating Systems*3 Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008
Mac® OS X 10.9.5 & up*4, Linux*4
Software Included Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status

General

Device Memory 1GB
LCD Display WVGA Colour LCD 12.7cm(5in) Touch Screen Display
Dimensions (W x D x H) 451 x 460 x 413mm
Weight 20.5kg
Power Consumption
Maximum 850W
Average (During Copy) 370W
Average (During Standby) 11W
Average (During Sleep) 0.8W (USB/ LAN / Wi-Fi)
Noise Levels*5
During Operation Sound Pressure Level: 51dB
Sound Power Level: 69.4dB
During Standby Sound Pressure Level: Inaudible
Sound Power Level: 43dB
Operating Environment
Temperature 10 - 30°C
Humidity 20% - 80% RH (no condensation)
Power Requirements AC 220-240 V (±10%), 50/60 Hz (±2Hz)
-10%
Copy
Copy Type Monochrome Laser
Copy Speed Up to 18 / 19cpm (A4 / LTR)
Copy Resolution Speed priority mode: 600 x 400dpi
Resolution priority mode: 600 x 600dpi
Halftones 256 levels
Warm up Time (From Power On) 10s or less
Recovery Time (From Sleep Mode) 2s or less (Copy)
0.3s or less (Print)
First Copy Time (FCOT) 12.0 / 11.8s (A4 / LTR)
Paper Source 150 sheet cassette
Paper Weight 60 to 163g/m2 (cassette)
Papet Output 100 sheets (face down)
Zoom 50 - 200% in 10% increments
Copy Size Platen: Up to A4 / LTR
Copy Features 2 on 1, ID Card Copy
Copy Memory 64MB (Shared)
Print
Printer Type Monochrome Laser
Print Speed Up to 18 pages per minute / 19 pages per minute (A4 / LTR)
First Printout Time (FPOT) 7.8s / 7.7s (A4 / LTR)
Print Language UFR II LT
Print Resolution Up to 600 x 600dpi, 1 200 (equivalent) x 600dpi
Print Memory 64MB (Shared)
Scan
Scan Type CIS
Scan Resolution Optical: Up to 600 x 600dpi
Driver enhanced: Up to 9 600 x 9 600dpi
Colour Depth 24-bit
Document Size Platen: Up to A4
Compatibility TWAIN, WIA
Output File Format Windows: Hi-Compression PDF, Searchable PDF, PDF, JPEG, TIFF, BMP
Mac: PDF, JPEG, TIFF, BMP, PNG
Pull Scan Yes, USB
Scan To PC None
Interface / Software
Standard Interface USB 2.0 Hi-Speed
USB Function Print, Scan
Compatible Operating Systems*1 Windows 8 (32 / 64-bit), Windows 7 (32 / 64bit), Windows Vista (32 / 64-bit), Windows XP (32 / 64bit), Windows 2000, Mac OS X 10.4 - 10.8, Linux*3
General Specifications
LCD Display 7 Segment (1 digit) LED
Dimensions
(W x D x H)
372 x 276 x 254mm (With the cassette closed)
372 x 371 x 254mm (With the cassette opened)
Weight w/CRG: 8.2kg
w/o CRG: 7.6kg
Power Consumption Maximum: 960W
During Operation: 450W
Standby: 2.5W
Sleep: 1.4W
TEC (Typical Electricity Consumption) 0.6kWh/W
Toner Cartridge*4 Cartridge 925*2 (1 600 pages)
(Bundled cartridge 700 pages)
Monthly Duty Cycle 8 000 pages
Recommended Monthly Print Volume 250 - 1 000 pages
-10%
Print
Printing Method Monochrome Laser Beam Printing
Print Speed A4:  18 pages per minute
Letter:  19 pages per minute
Print Resolution 600 x 600dpi
Print Quality with Image Refinement Quality 2 400 (equivalent) × 600dpi
Warm-Up Time
(From Power On)
10s
First Printout Time (FPOT) 7.8s
Recovery Time
(From Sleep Mode)
1s
Print Language UFR II LT
Paper Handling
Paper Input (Standard) 150 sheets (based on 80g/m2)
Paper Output 100 sheets (face down)
(based on 80g/m2)
Paper Size A4, B5, A5, Legal*1, Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL
Custom: Width 76.2 to 215.9mm x Length 188 to 355.6mm
Paper Weight 60 to 163g/m2
Paper Type Plain paper, Heavy Paper, Transparency, Label, Envelope.
Connectivity and Software
USB Interface USB 2.0 High Speed
Network Interface Wi-Fi 802.11b/g/n (WPS Easy Set Up)
Network Protocol Print: LPD, RAW, WSD-Print
Management: SNMPv1, SNMPv3, SLP
TCP/IP Application Services: WINS (IPv4), DHCP, BOOTP, RARP, DHCPv6 (IPv6), Auto IP, mDNS, DNS, DDNS
Network Security WEP, WPA-PSK(TKIP/AES-CCMP), WPA2-PSK(TKIP/AES-CCMP)
Mobile Print Canon Mobile Printing
Compatible Operating Systems*2 Win 8.1 (32 / 64bit), Win 8 (32 / 64bit), Windows 7 (32 / 64-bit), Windows Vista (32 / 64-bit), Windows XP (32 / 64-bit), Windows Server 2012 (32 / 64bit), Windows Server 2012 R2 (64 bit), Windows Server 2008 (32 / 64bit), Windows Server 2008 R2 (64bit), Windows Server 2003 (32 / 64bit),
Mac OS 10.6.x~10.9*3, Linux*3, Citrix
General Specification
Operation Panel 3 LED indicators, 3 Operation Key
Device Memory 32MB
Dimensions (W x D x H) 364 x 249 x 199mm
Weight 5.0kg (Without Cartridge)
Noise Level*4 During Operation: Sound Power Level: 6.53dB
Sound Pressure Level: 49.3dB
During Standby: Sound Power Level: Inaudible*5
Sound Pressure Level: Inaudible*5
 Power Consumption Maximum 840W
Average Power Consumption During Operation: 320W
During Standby: 1.8W (USB connection)
2.8W (Wireless connection)
During Sleep: 0.8 W (USB connection)
1.6W (Wireless connection)
Energy Star TEC
(Typical Electricity Consumption)
0.48kWh/week
Operating Environment Temperature: 10~30°C
Humidity: 20% to 80% RH (no condensation)
Power Requirement 220 - 240V (±10%), 50 / 60Hz (±2Hz)
Toner Cartridge*6 Cartridge 925: 1 600 pages
Monthly Duty Cycle*7 5 000 pages
Recommended Monthly Print Volume 200 - 800 pages
-10%
Model TASKalfa 2020 TASKalfa 2320 TASKalfa 2321
Main Function Copy, Print, Scan, Fax (Optional for TASKalfa 2321 only)
Writing Method Semiconductor Laser
CPU 500MHz
Print Speed (A4) Simplex/Duplex (Optional) 20/10 cpm 23/11 cpm
Scanning Speed (A4) 300dpi (Mono/Color) Simplex 23/14 ipm
Duplex 8/6 ipm
Memory 256MB
Warm Up Time 17.2 seconds 18.8 seconds
Paper Capacity Stand 400 sheets: 1 x 300 sheets (Cassette) + 100 sheets (MPT)
Maximum 1,300 sheets (Main Unit + PF-480 x 3) + MPT
Paper Size Cassette Max. A3 (Ledger) - Min. A5R
MPT Max. A3 (Ledger) - Min. A6R
Paper Weight Cassette 64 to 105 g/m2
MPT 45 to 160 g/m2
Duplex Printing (Optional) Paper size: Max. A3 (Leger) - Min. A5R; Paper weight: 64 to 105 g/m2
Display LCD (Back Light) 2 Lines 5 Lines
128 x 32 dot 128 x 64 dot
Dimension (W x D x H) (Main Unit) 565 mm x 527 mm x 485 mm (with platen)
Weight (Main Unit) 27kg (Excluding the weight of toner container)
Power Consumption (Standard configuration) Copy/Print Mode 378W or less 450W or less
Stand-by Mode 74W or less
Sleep Mode 1.1W or less 2.3W or less
Noise (ISO7779/ ISO9296) Copy/Print Mode 62dB(A)
Stand-by Mode 40dB(A)

Copy Functions (Standard)

Model TASKalfa 2020 TASKalfa 2320 TASKalfa 2321
Copy Size Max. A3 (Ledger) - Min. A6R
Resolution 600 x 600 dpi
First Copy Time 5.7 seconds
Zoom Ratio 25% to 400% (1% per Step)
Multiple Copy 1 to 999
ID Card Copy Yes
N-Up Copy 2 in 1 , 4 in 1

Print Functions (Standard)

Model TASKalfa 2020 TASKalfa 2320 TASKalfa 2321
Resolution 600 x 600 dpi
First Print Time 5.7 seconds
PDL Host Based (GDI)
Operating System Supported Windows: 7/8.1/10, server:2008/2008 R2/2012/2012 R2/2016; Apple Macintosh: OS X 10.9 or later; Linux
Interface USB2.0 High Speed x1; 100BASE-TX/10BASE-T(TASKalfa 2321 only)
Network Printing TCP/IP, NetWare, AppleTalk, NetBEUI(TASKalfa 2321 only)
Print Box 10 30

Scan Functions (Standard)

Model TASKalfa 2020 TASKalfa 2320 TASKalfa 2321
Color Selection Full Color; Gray scale; Mono
Resolution Color/ Gray scale: 300dpi, 200dpi; Mono: 600dpi, 400dpi, 300dpi, 200dpi
File Format TIFF (MMR/JPEG compression), PDF (MMR/JPEG compression/High Compression), JPEG, BMP
Image Type Mode Text, Photo, Text + Photo
Transmission Type Scan to PC (SMB); Scan to E-mail; TWAIN Scan; WIA Scan Scan Utility: Client Tool
TWAIN scan Address 10 addresses 30 addresses

Fax Functions (Optional)

Model TASKalfa 2020 TASKalfa 2320 TASKalfa 2321
Original Size ---- Max. A3 (Ledger) – Min. A5 (Statement)
Coding Method ---- MMR, MR, MH
Transmission Speed ---- Super G3 33.6 kbps
Transmission Time ---- 4 seconds or less (MMR)
Fax Resolution ---- Normal, Fine, Super Fine
Network FAX ---- Yes (Transmission only)
Address Book ---- 100 single addresses and
20 group addresses
One Touch Dial ---- 32
-10%
Model ECOSYS M3145dn ECOSYS M3645dn ECOSYS M3660idn
Main Function Copy, Print, Scan, Fax (ECOSYS M3645dn/M3660idn only)
Writing Method Semiconductor Laser
CPU Cortex-A9 1.2GHz
Print Speed (A4) (Mono) 45 ppm 60 ppm
Scanning Speed (A4) 300dpi (Mono/Color) Simplex 60/40 ipm
Duplex 26/17 ipm 100/64 ipm
Memory Standard 1GB (Max. 3GB)
Warm Up Time 16 seconds 25 seconds
Paper Capacity Standard 500 sheets (Cassette) + 100 sheets (MPT)
Maximum 2,600 sheets (Main Unit + 500 sheets PF-3110 x4 + MPT)
Paper Size Cassette Min. A5R - Max. A4 (Legal) Min. A6R - Max. A4 (Legal)
Option Min. A5R - Max. A4 (Legal)
MPT Min. 70mm x 148mm - Max. A4 (Legal) & Banner Print of 216mm x 915mm
Paper Weight Cassette 60 - 120 g/m2
Option 60 - 120 g/m2
MPT 60 - 120 g/m2
Duplex Printing Paper size: A5R to A4/Legal; Paper weight: 60 - 120 g/m2
Output Capacity Max. 250 sheets face-down Max. 250 sheets face-down
Control Panel 5 lines LCD 7 inch Color Touch LCD Panel
Document Processor Standard (Max. 75 sheets RADF Type) Standard (Max. 100 sheets One-path duplex scanning Type)
Dimension (W x D x H) (Main Unit) 475mm x 476mm x 575mm 480mm x 495mm x 590mm
Weight (Main Unit) Approx. 22.8 kg Approx. 24.7 kg
Power Consumption (Standard configuration) Copy/Print Mode 652W / 630W 746W / 723W
Stand-by Mode 50W 54W
Energy Saver 0.5W
Noise (ISO7779/ ISO9296) Copy/Print Mode 54dB(A) 57dB(A)
Stand-by Mode 30dB(A)

Copy Functions (Standard)

Model ECOSYS M3145dn ECOSYS M3645dn ECOSYS M3660idn
Copy Size Max. A4 (Legal) – Min. A6R
Resolution 600 x 600 dpi
First Copy Time (Mono) 7.0 seconds or less
Zoom Ratio Manual 25% – 400% (1% per Step)
Pre-defined 7R5E
Multiple Copy 1 – 999

Print Functions (Standard)

Model ECOSYS M3145dn ECOSYS M3645dn ECOSYS M3660idn
Resolution 600 x 600 dpi, Fast 1200, Fine 1200
PDL PCL6 (PCL5e, PCL-XL, PCL 5c), KPDL3 (Postscript 3 compatible), XPS
First Print Out Time (Mono) 5.9 seconds or less 4.9 seconds or less
Supported Protocol NetBEUI, FTP, Port 9100, LPR, IPP, IPP over SSL, WSD Print, Apple Bonjour
Operating System Supported Windows Server 2008, Windows Server 2008 R2, Windows Server 2012; Windows 7, Windows 10; Linux
Interface USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; USB Host Interface (USB Host)x2
USB Memory Printing Standard
USB Memory Printing Format TIFF, JPEG, PDF, XPS

Scan Functions (Standard)

Model ECOSYS M3145dn ECOSYS M3645dn ECOSYS M3660idn
Color Selection ACS; Full Color; Grayscale; Black & White
Resolution 600dpi, 400dpi, 300dpi, 200dpi, 200x400dpi, 200x100dpi
File Format TIFF, JPEG, XPS, PDF (MMR/JPG/High-compression PDF)
Image Type Mode Text, Photo, Text + Photo
Transmission Type Scan to SMB; Scan to E-mail; Scan to FTP or FTP over SSL; Scan to USB; TWAIN Scan; WSD Scan
Address Storage 200 addresses (Common address list), 50 groups (Group address list)

Fax Functions (ECOSYS M3645dn/M3660idn only)

Model ECOSYS M3145dn ECOSYS M3645dn ECOSYS M3660idn
Original Size Max. A4 (Legal) – Min. A6
Coding Method MMR, MR, MH, JBIG
Transmission Speed 33.6 kpbs
Memory 6MB
One Touch Dial 100 numbers (ECOSYS M3645dn/M3660idn)
Network FAX Yes
