ApeosPort Print C3320SD
Basic Specifications

Printing

• Display: 2-line All Points Addressable (APA) monochrome LCD display

• Print Speed: Up to: Black: 24 ppm (A4) / Colour: 24 ppm (A4)
• Time to First Page: As fast as : Black: 10.9 seconds / Colour: 10.9 seconds
• Print Resolution: Black: 4800 Colour Quality, 600 x 600 dpi / Colour: 600 x 600 dpi, 4800 Colour Quality
• Memory : 512 MB
• Hard Disk : Not Available


Copying

• Copy Speed: Up to Black: 33 ppm (A4) / Colour: 33 ppm (A4)
• Time to First Copy: As fast as Black: 8.9 seconds / Colour: 13.2 second


Supplies

• Toner Cartridge Yields:  (up to) 7,000-page Colour (CMY) Ultra High Yield Cartridges, 10,500-page Black Ultra High Yield Cartridge

• Imaging kit Estimated Yield: Up to:  125000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

• Cartridge(s) Shipping with Product: 2,000-page Colour (CMY) Toner Cartridges, 3,000-page Black Toner Cartridge

​Paper Handling

• Included Paper Handling:  250-Sheet Input, 150-Sheet Output Bin, Integrated Duplex, Single-Sheet Manual Feed

• Optional Paper Handling 550-Sheet Tray, 650-Sheet Duo Tray

• Paper Input Capacity: Standard: 250+1 pages 75 gsm / Maximum: 1450+1 pages 75 gsm

• Paper Output Capacity: Up to 100 pages 75 gsm

• Media Types Supported Paper Labels:Card Stock, Paper Labels, Plain Paper, Vinyl Labels

• Media Sizes Supported:  A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5                                                                                        Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope

Faxing

• Modem Speed: ITU T.30, V.34 Half-Duplex, 33.6 Kbps Kbps

Scanning

• Scanner Type / ADF Scan Flatbed scanner with ADF / RADF (Reversing Duplex)
• A4/Ltr Duplex Scan Speed: Up to Black: 21 / 23 ppm / Colour: 13 / 14 ppm
• A4/Ltr Simplex Scan Speed: Up to Black: 47 / 50 ppm / Colour: 30 / 32 ppm
• ADF Paper Input Capacity: Up to 50 pages 75 gsm

General Information

• Standard Ports: USB 2.0 Specification Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A)
• Wi-Fi: Option available （802.11 a/b/g/n/ac Wireless）
• Noise Level: Operating Operating: Print: 52 dBA / Copy: 56 dBA / Scan: 55 dBA
• Specified Operating Environment*1 :Humidity: 8 to 80%*2 Relative Humidity, Temperature: 10 to 32°C*3 (excluding faults caused by condensation)
• Size (mm - H x W x D) / Weight (kg): 244 x 412 x 395 mm / 16.1 kg

ApeosPort Print C3830SD
Basic Specifications

Printing

• Display:4.3-inch (10.9 cm) Colour touch screen

• Print Speed: Black: 38 ppm (A4) / Colour: 38 ppm (A4)
• Time to First Page: As fast as : Black: 8 seconds / Colour: 8 seconds
• Print Resolution: Black: 1200 x 1200 dpi, 4800 Colour Quality (2400 x 600 dpi) / Colour: 1200 x 1200 dpi, 4800 Colour Quality (2400 x 600 dpi)
• Memory : 2048 MB
• Hard Disk : Option Available


Copying

• Copy Speed: Up to Black: 38 ppm (A4) / Colour: 38 ppm (A4)
• Time to First Copy: As fast as Black: 7.9 seconds / Colour: 12.3 second


Supplies

• Toner Cartridge Yields:  (up to) 7,000-page Colour (CMY) Ultra High Yield Cartridges, 10,500-page Black Ultra High Yield Cartridge

• Imaging kit Estimated Yield: Up to:  125000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

• Cartridge(s) Shipping with Product: 2,000-page Colour (CMY) Toner Cartridges, 3,000-page Black Toner Cartridge

​Paper Handling

• Included Paper Handling:  250-Sheet Input, 150-Sheet Output Bin, Integrated Duplex, Single-Sheet Manual Feed

• Optional Paper Handling 550-Sheet Tray, 650-Sheet Duo Tray

• Paper Input Capacity: Standard: 250+1 pages 75 gsm / Maximum: 1450+1 pages 75 gsm

• Paper Output Capacity: Up to 150 pages 75 gsm

• Media Types Supported Paper Labels:Card Stock, Paper Labels, Plain Paper, Vinyl Labels

• Media Sizes Supported:  10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, B5 Envelope, C5 Envelope, DL Envelope, Hagaki Card, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal, Oficio, A6

Faxing

• Modem Speed: Max is 33,600 bps, V.34 Half-Duplex Kbps

Scanning

• Scanner Type / ADF Scan: Flatbed scanner with ADF / RADF (Reversing Duplex)
• A4/Ltr Duplex Scan Speed: Up to Black: 94 / 100 ppm / Colour: 60 / 64 ppm
• A4/Ltr Simplex Scan Speed: Up to Black: 47 / 50 ppm / Colour: 30 / 32 ppm
• ADF Paper Input Capacity: Up to 100 pages 75 gsm

General Information

• Standard Ports: USB 2.0 Specification Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified Port (Type A)
• Wi-Fi: Option available （802.11 a/b/g/n/ac Wireless）
• Noise Level: Operating Operating: Print: 52 dBA / Copy: 56 dBA / Scan: 55 dBA
• Specified Operating Environment*1 :Humidity: 8 to 80%*2 Relative Humidity, Temperature: 10 to 32°C*3 (excluding faults caused by condensation)
• Size (mm - H x W x D) / Weight (kg): 462 x 442 x 588 mm / 27.1 kg

Printing

• Display: 2-line All Points Addressable (APA) monochrome LCD display

• Print Speed: Up to: Black: 24 ppm (A4) / Colour: 24 ppm (A4)
• Time to First Page: As fast as : Black: 10.9 seconds / Colour: 10.9 seconds
• Print Resolution: Black: 4800 Colour Quality, 600 x 600 dpi / Colour: 600 x 600 dpi, 4800 Colour Quality
• Memory : 512 MB
• Hard Disk : Not Available

Supplies

• Print Cartridge Yields (up to): 4,500 -page Black High Yield Cartridge /
                                                 4,500 -page Colour (CMY) High Yield Cartridges / 1,500 -page Black Cartridge /
                                                 1,500 -page Colour (CMY) Cartridges
• Cartridge(s) Shipping with Product : 750 -page Black Toner Cartridge, 500 -page Colour (CMY) Toner Cartridge


​Paper Handling

• Included Paper Handling:  100-Sheet Output Bin, Integrated Duplex, Single-Sheet Manual Feed, 250-Sheet Input

• Paper Input Capacity: Up to 250+1 pages 75 gsm

• Paper Output Capacity: Up to 100 pages 75 gsm

• Media Types Supported Paper Labels: Card Stock, Plain Paper, Envelopes, Glossy Paper

• Media Sizes Supported:  A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5                                                                                        Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope

General Information

• Standard Ports: 802.11b/g/n Wireless, USB 2.0 Specification Hi-Speed Certified (Type B), Ethernet 10/100/1000 BaseTX (RJ-45)
• Noise Level: Operating Operating: 52 dBA (Print)
• Specified Operating Environment*1 :Humidity: 8 to 80%*2 Relative Humidity, Temperature: 10 to 32°C*3 (excluding faults caused by condensation)
• Size (mm - H x W x D) / Weight (kg): 244 x 412 x 395 mm / 16.1 kg

Basic Specifications / Copy Function

• Type: Desktop
• Memory Capacity: 512 MB (Max: 512 MB)
• Storage Device Capacity(The Storage Device Capacity is not totally available for customers.): eMMC:1.8 GB
• Colour Capability: Full Colour
• Scan Resolution: 600 x 600 dpi
• Printing Resolution: 600 x 2400 dpi
• Warm-up Time: 35 seconds or less (23 degrees Celsius room temperature)
• Recovery Time (Recovery Time from Sleep Mode): 17 seconds or less (23 degrees Celsius room temperature)
• Original Size: Maximum of A4, Letter, Legal (Not available on Scanner Glass) for both Sheet and Book
• Paper Size: Max: A4, Letter, Legal

                              Min: A6, 76 x 127 mm
                              Image loss width: Lead edge 4.1 mm, Trail edge 4.1 mm, Right/Left edge 4.1 mm

• Paper Weight (It is recommended to use our recommended paper. Correct print output may not be possible depending on the requirement)

          Paper Tray: 60 to 176 gsm
          Bypass Tray: 60 to 176 gsm

• First Copy Output Time (Measured in accordance to ISO/IEC 29183): B/W: 9.5 sec. (A4) Colour: 12.0 sec. (A4)
• Continuous Copy Speed (The speed may be reduced due to the image quality adjustment.): A4: B/W: 31 ppm Colour: 31 ppm

                                                                                                                                                   A5: B/W: 41 ppm Colour: 41 ppm

• Paper Tray Capacity (80 gsm paper): Standard: Standard Tray: 250 sheets Bypass Tray: 50 sheets

                                                                   Optional: 250 Sheets Feeder Unit: 250 sheets
                                                                   Max: 550 sheets [Standard + 250 Sheets Feeder Unit]

• Output Tray Capacity (80 gsm paper): 150 sheets (Face down)
• Power Supply: AC220-240 V +/- 10 %, 10 A, 50/60 Hz common
• Maximum Power Consumption: 1120 W Sleep Mode: 0.5 W Low Power Mode: 11 W Ready Mode: 41 W
• Dimensions: W 410 x D 430 x H 366 mm
• Weight (Excluding Toner Cartridge): Apeos C325 z: 20.6 kg

                                                                  Apeos C325 dw: 20.5 kg

Scan Function

• Type: Colour Scanner
• Scan Resolution: Scan to PC: TWAIN: 50 x 50 to 9600 x 9600 dpi WIA : 75 dpi, 100 dpi, 150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi

                                      Scan to Network / e-mail 200 dpi, 300 dpi, 400 dpi (When scanner glass is used), 600 dpi (When scanner glass is used)

• Scan Speed: Same as the Scan Speed for the Automatic Document Feeder
• Interface: Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB2.0

                                           Wireless LAN (IEEE 802.11 b / g / n)

Fax Function

• Original Size: Scanner Glass: Max A4, Letter Automatic Document Feeder: Max Legal
• Recording Paper Size: Max: Legal; Min: A4, Letter
• Transmission Time: 3 seconds and more but fewer than 4 seconds (: When A4 size document with approximately 700 characters is transmitted in standard image quality (8 x 3.85 lines/mm) and in high-speed mode (33.6 kbps or faster, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the document, the type of machine receiving the fax, and line condition.)
• Transmission Mode: ITU-T G3
• Applicable Lines: Telephone subscriber line, PBX, Maximum 1 port ( No. of FAX lines is up to 1 port. Port refers to number of channels for FAX.) (G3-1 port)

​Automatic Document Feeder

• Type: FujiFilm Apeos C325 z: 1 pass, 2 sided scanning Duplex Automatic Document Feeder

                     FujiFilm Apeos C325 dw: Automatic Document Feeder

• Original Size / Paper Weight: Apeos C325 z: Max: Legal; Min: A5 (The minimum custom size is 139.7 x 139.7 mm) 60 to 105 gsm (In Duplex: 60 to 105 gsm)

                                                       Apeos C325 dw: Max: Legal; Min: A5 ( The minimum custom size is 139.7 x 139.7 mm.) 60 to 105 gsm Capacity (80 gsm paper) 50 sheets

• Scan Speed (The scanning speed varies depending on the documents.)

          Copy: (A4, Simplex) B/W: 30 ppm Colour: 16 ppm
          Scan (Standard document (A4), 200 dpi, to USB flash drive): Apeos C325 zB/W: 30 ppm, Colour: 15 ppm (1 pass, 2 sided scanning; B/W: 45 ppm, Colour: 22 ppm)
                                                                                                   Apeos C325 dw: B/W: 30 ppm, Colour: 15 ppm

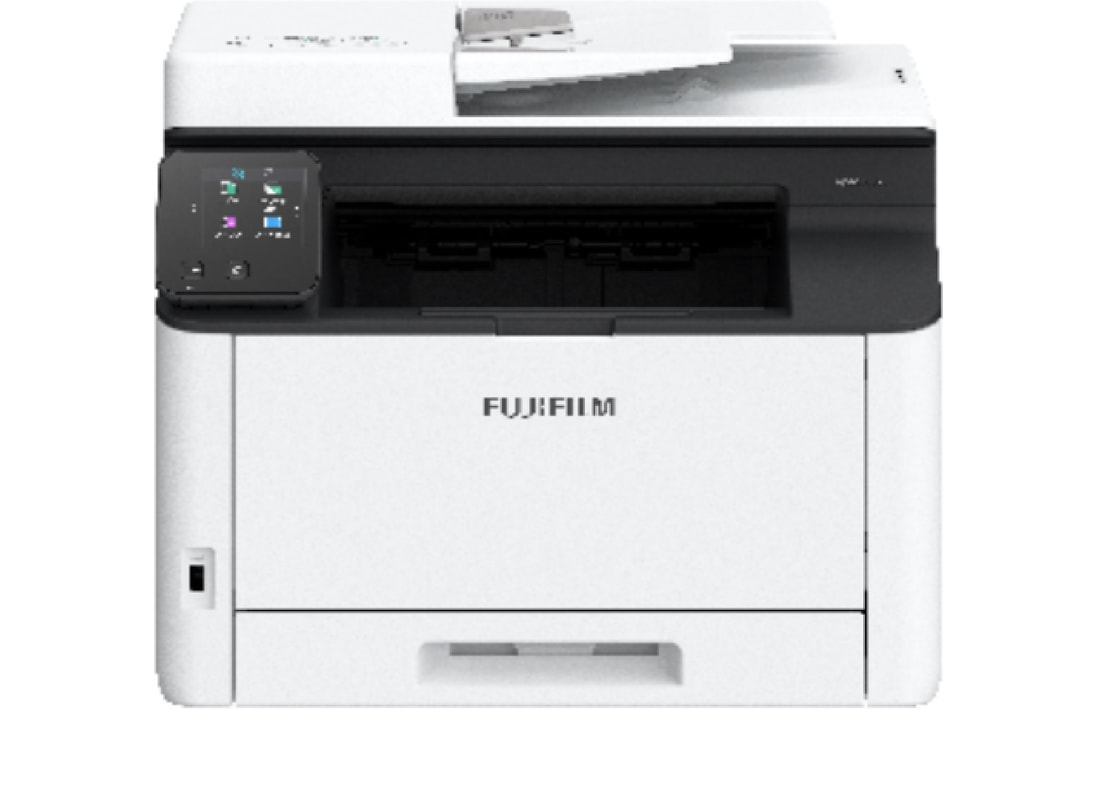

Print Function (ApeosPrint C325 dw)

• Printing Method: LED Xerography (LED + Xerographic)
• Warm-up Time: 35 seconds or less (23 degrees Celsius room temperature). 17 seconds or less from Sleep Mode.
• Continuous Print Speed (When When continuously printing original(Plain). The performance may be reduced depending on the paper type and the paper size. The speed may be reduced due to the image quality adjustment. Measured in accordance to ISO/IEC 24734.)

          Simplex: A4 Colour: 31 ppm, B/W: 31 ppm A5 Colour: 41 ppm, B/W: 41 ppm
          Duplex: A4 Colour: 19 ppm, B/W: 19 ppm A5 Colour: 23 ppm, B/W: 23 ppm

• First Print Output Time (When feeding from feeder tray of machine and USB connection. Numeric value varies depending on output environment. Measured in accordance to ISO/IEC 17629.): Colour: 11.0 seconds (A4), B/W: 10.0 seconds (A4)
• Printing Resolution: Standard: [PCL Driver] 600 x 2400 dpi

                                                         [Postscript language compatibility] 600 x 2400 dpi

• Paper Size: Standard Tray: A6, A5, JIS B5, A4, Letter, Executive (184 x 267 mm), Folio (216 x 330 mm), Legal, COM-10, Monarch, DL, C5, Postcard (4 x 6"), Postcard (5 x 7"), Custom Size (Width: 76.2 to 215.9 mm, Length: 127.0 to 355.6 mm)

                            Bypass Tray: A6, A5, JIS B5, A4, Letter, Executive (184 x 267 mm), Folio (216 x 330 mm), Legal, COM-10, Monarch, DL, C5, Postcard (4 x 6"), Postcard (5 x 7"), Custom Size (Width: 76.2 to 215.9 mm, Length: 127.0 to 355.6 mm)
                            Optional Tray: 250 Sheets Feeder Unit: A5, JIS B5, A4, Letter, Executive (184 x 267 mm), Folio (216 x 330 mm), Legal, Custom Size (Width: 76.2 to 215.9 mm, Length: 210.0 to 355.6 mm)
                            2 Sided Printing: A5, JIS B5, A4, Letter, Executive (184 x 267 mm), Folio (216 x 330 mm), Legal, Custom Size (Width: 139.0 to 215.9 mm, Length: 210.0 to 355.6 mm)

• Paper Weight (It is recommended to use our recommended paper. Correct print output may not be possible depending on the requirement.)

            Standard Tray: 60 to 176 gsm
            Bypass Tray: 60 to 176 gsm
            Optional Tray: 250 Sheets Feeder Unit: 60 to 176 gsm 2
            Sided Printing: 60 to 176 gsm

• Paper Tray Capacity (80 gsm paper): Standard: Standard Tray: 250 sheets Bypass Tray: 50 sheets

                                                                        Optional: 250 Sheets Feeder Unit: 250 sheets
                                                                        Max: 550 sheets [Standard + 250 Sheets Feeder Unit]

• Output Tray Capacity (80 gsm paper): 150 sheets (Face down)
• CPU: ARM Single core 667 MHz
• Memory Capacity: 512 MB (Max: 512 MB)
• Storage Device Capacity (The Storage Device Capacity is not totally available for customers): eMMC: 1.8 GB
• Page Description Language: Standard PCL5 / PCL6, Postscript language compatibility
• Supported Operating System (Please refer to FujiFilm official website for the latest supported OS.)

            Standard: [PCL Driver]: Windows 10 (32 bit/64 bit) Windows 8.1 (32 bit/64 bit)
                                                 Windows Server 2019 (64 bit) Windows Server 2016 (64 bit)
                                                 Windows Server 2012 R2 (64 bit) Windows Server 2012 (64 bit)
                           [Postscript language compatibility]: Windows 10 (32 bit/64 bit) Windows 8.1 (32 bit/64 bit)
                                                                                        Windows Server 2019 (64 bit) Windows Server 2016 (64 bit)
​                                                                                        Windows Server 2012 R2 (64 bit) Windows Server 2012 (64 bit)
​                                                                                        macOS 11 / 10.15 / 10.14 / 10.13 / 10.12

• Interface: Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB2.0

                                            Wireless LAN (IEEE 802.11 b / g / n) Network Protocol TCP/IP (lpd, IPP/IPPS, Port9100, WSD)

• Power Supply (Power outlets that provide the above power level is recommended. Maximum machine measured current: 6 A): AC220-240 V +/- 10 %, 10 A, 50/60 Hz common
• Operating Noise (Measured in accordance to ISO7779. Unit B: Sound Power Level LWAd. Unit dB: Radiated Sound Pressure Level LpAm (bystander position). "Noise-free" refers to Radiated Sound Pressure Levels equal to or below ISO 7779 background noise absolute standards for each bystander position.): In Operation: 6.99 B, 50.7 dB (A) Ready Mode: Noise-free
• Maximum Power Consumption: Max: 1110 W

                                                               Sleep Mode: 0.5 W
                                                               Average: Ready Mode: 37 W In Operation: 407 W

• Dimensions: W 410 x D 430 x H 255 mm
• Weight: 17.4 kg (Including consumables and drum) 16.8 kg (Excluding consumables and drum)

Printing

• Display:2-line All Points Addressable (APA) monochrome LCD display

• Print Speed: Black: 34 ppm (A4)
• Time to First Page: As fast as : Black: 8 seconds
• Print Resolution: Black: 1200 Image Quality, 2400 Image Quality, 300 x 300 dpi, 600 x 600 dpi
• Memory : 512 MB
• Hard Disk :Not Available


Copying

• Copy Speed: Up to Black: 34 ppm (A4)
• Time to First Copy: As fast as Black: 8.0 seconds

Supplies

• Toner Cartridge Yields:  (up to) 7,000-page Colour (CMY) Ultra High Yield Cartridges, 10,500-page Black Ultra High Yield Cartridge

• Imaging kit Estimated Yield: Up to:  125000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

• Cartridge(s) Shipping with Product: 2,000-page Colour (CMY) Toner Cartridges, 3,000-page Black Toner Cartridge

​Paper Handling

• Included Paper Handling:  250-Sheet Input, 150-Sheet Output Bin, Integrated Duplex, Single-Sheet Manual Feed

• Paper Input Capacity: Standard: 251 pages 75 gsm

• Paper Output Capacity: Up to 150 pages 75 gsm

• Media Types Supported Paper Labels:Card Stock, Envelopes, Paper Labels, Plain Paper

• Media Sizes Supported:  A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope, Hagaki

Faxing

• Modem Speed: Max is 33,600 bps, V.34 Half-Duplex Kbps

Scanning

• Scanner Type / ADF Scan: Flatbed scanner with ADF / RADF (Reversing Duplex)
• A4/Ltr Duplex Scan Speed: Up to Black: 23 / 25 ppm / Colour: 7 / 8 ppm
• ADF Paper Input Capacity: Up to 50 pages 75 gsm

General Information

• Standard Ports: Ethernet 10/100BaseTX (RJ-45), USB 2.0 Specification Hi-Speed Certified (Type B), 802.11b/g/n Wireless
• Noise Level: Operating Operating: Print: 52 dBA / Copy: 56 dBA / Scan: 55 dBA
• Specified Operating Environment*1 :Humidity: 15 to 80%*2 Relative Humidity, Temperature: 10 to 32°C*3 (excluding faults caused by condensation)
• Size (mm - H x W x D) / Weight (kg):352 x 415 x 360 mm / 11.4 kg

Printing

• Display:2.8-inch (7.2 cm) LCD touch panel

• Print Speed: Black: 40 ppm (A4)
• Time to First Page: As fast as : Black: 5.9 seconds
• Print Resolution: Black: 2400 IQ (2400 x 600 dpi), 600 x 600 dpi
• Memory : 512 MB
• Hard Disk :Not Available


Copying

• Copy Speed: Up to Black: 39 ppm (A4)
• Time to First Copy: As fast as Black: 8.0 seconds

Supplies

• Toner Cartridge Yields:  (up to) 7,000-page Colour (CMY) Ultra High Yield Cartridges, 10,500-page Black Ultra High Yield Cartridge

• Imaging kit Estimated Yield: Up to:  125000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

• Cartridge(s) Shipping with Product: 2,000-page Colour (CMY) Toner Cartridges, 3,000-page Black Toner Cartridge

​Paper Handling

• Included Paper Handling:  250-Sheet Input, 150-Sheet Output Bin, Integrated Duplex, Single-Sheet Manual Feed

• Paper Input Capacity: Standard: 251 pages 75 gsm

• Paper Output Capacity: Up to 150 pages 75 gsm

• Media Types Supported Paper Labels:Card Stock, Envelopes, Paper Labels, Plain Paper

• Media Sizes Supported:  A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope, Hagaki

Faxing

• Modem Speed: Max is 33,600 bps, V.34 Half-Duplex Kbps

Scanning

• Scanner Type / ADF Scan: Flatbed scanner with ADF / DADF (single pass Duplex)
• A4/Ltr Duplex Scan Speed: Up to Mono: 92 / 96 ppm / Colour: 40 / 42 ppm
• A4/Ltr Simplex Scan Speed: Up to Mono: 46 / 48 ppm / Colour: 20 / 21 ppm
• ADF Paper Input Capacity: Up to 50 pages 75 gsm

General Information

• Standard Ports: Ethernet 10/100BaseTX (RJ-45), USB 2.0 Specification Hi-Speed Certified (Type B), 802.11b/g/n Wireless
• Noise Level: Operating Operating: Print: 52 dBA / Copy: 56 dBA / Scan: 58 dBA
• Specified Operating Environment*1 :Humidity: 15 to 80%*2 Relative Humidity, Temperature: 10 to 32°C*3 (excluding faults caused by condensation)
• Size (mm - H x W x D) / Weight (kg):339 x 411 x 366 mm / 12.8 kg

Printing

• Display: Apeos 4620
• SX: 5.0-inch color touchscreen, Apeos 4620 SZ: 3.5-inch color touchscreen
• Print Speed: Black: 46 ppm (A4)
• Print Resolution: 1,200 x 1,200 dpi
• Memory: 1 GB (Max: 1 GB)
• Hard Disk: Not available

Copying

• Copy Speed: Black: 46 ppm (A4)
• First Copy Output Time: 8.7 seconds or less (A4, Ready Mode)

Supplies

• Toner Cartridge Yields: Standard Capacity: Up to 6,000 pages. High Capacity: Up to 11,000 pages. Ultra High Capacity: Up to 18,000 pages Drum Cartridge: Up to 73,000 pages

​Paper Handling

• Handling Standard Paper Input: Standard Tray: 250 sheets + Bypass Tray: 100 sheets Optional
• Paper Input: 250 Sheet Feeder or 520 Sheet Feeder (up to two can be added)
• Maximum Paper Capacity: 1,390 sheets Paper Output Capacity: 150 sheets (face down), 10 sheets (face up)
• Media Types Supported: Various types & sizes of paper, envelopes, labels, and postcards
• Media Sizes Supported: A4, Letter, Legal, Folio, A6 (min size for Bypass Tray)

Faxing

• 2 seconds and more but fewer than 3 seconds

Scanning

• Scanner Type: Color Scanner Scan
• Resolution: 1,200 x 1,200 dpi (from Flatbed), 600 x 600 dpi (from Automatic Document Feeder)
• ADF Capacity: Apeos 4620 SX: 80 sheets, Apeos 4620 SZ: 50 sheets Duplex Scan
• Speed: B/W: 56 ppm, Color: 40 ppm (A4, 300 dpi, to PC)

General Information

• Standard Ports: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB Hi-Speed 2.0, Wireless LAN (IEEE802.11b/g/n)
• Power Consumption: Maximum 1,280 W, Sleep Mode: 0.6 W (4620 SZ) / 0.7 W (4620 SX) Dimensions (W x D x H):
• Apeos 4620 SZ: 417 x 461 x 448 mm
• Apeos 4620 SX: 495 x 473 x 486 mm Weight: Apeos 4620 SZ: 16.2 kg, Apeos 4620 SX: 17.2 kg
