Showing 1 to 44 of 962 (1 Pages)

Show :

-10%

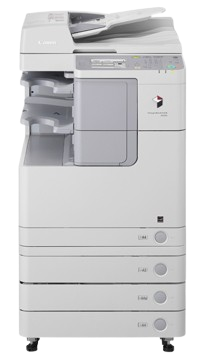

Feature iR 2525 iR 2530 iR 2535
Print Speed (A4) 25 ppm 30 ppm 35 ppm
Print Technology Monochrome Laser
Resolution 600 x 600 dpi (Print & Copy)
Processor Canon Custom Processor
Memory (RAM) 512 MB
Hard Disk Drive Optional (80GB)
Paper Capacity Standard: 1,100 sheets, Max: 2,300 sheets
Paper Size A3, A4, A5, Legal
Duplex Printing Yes
Scan Features Color and B/W Scanning, Scan to Email, Scan to Network (optional)
Copy Features Multiple Copies (Up to 999), ID Card Copy, 2-in-1, 4-in-1
Connectivity USB 2.0, Ethernet 10/100Base-TX
Fax (Optional) Yes (Super G3)
Dimensions (WxDxH) 565 x 680 x 806 mm
Weight Approx. 50-55 kg
-10%
TYPE Monochrome Laser Multifunctional
CORE FUNCTIONS Standard: Print, Copy, Scan, Send, Store
Optional: Fax
PROCESSOR Canon Dual Custom Processor (Shared)
CONTROL PANEL 10.1" TFT LCD WSVGA Color Touch-panel
MEMORY 3.0 GB RAM
HARD DISK DRIVE Standard: 250 GB
Maximum: 1 TB
MIRRORING HARD DISK DRIVE Optional (250 GB, 1 TB)
Method: Raid1
PRINT RESOLUTION 1200 dpi x 1200 dpi
INTERFACE CONNECTION Network
Standard: 1000Base-T/100Base-TX/10Base-T,Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth

Others
Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host),USB 2.0 x1 (Device)
Optional: Serial Interface, Copy Control Interface
PAPER CAPACITY (LTR, 20LB BOND) Standard: 1,180 SheetsMaximum: 6,330 Sheets
PAPER SOURCES (LTR, 20LB BOND) Standard: Two 550-sheet Paper Cassettes,80-sheet Stack Bypass
Optional: Two 550-sheet Paper Cassettes(Cassette Feeding Unit-AN1), 2,450-sheetPaper Deck (High Capacity CassetteFeeding Unit-B1), 2,700-sheet Paper Deck(Paper Deck Unit-F1)
PAPER OUTPUT CAPACITY (LTR, 20LB BOND) Standard: 250 Sheets
Maximum: 3,350 Sheets (with External Finishers)
FINISHING CAPABILITIES Standard: Collate, Group
With InnerFinisher:Collate, Group, Offset, Staple,Hole Punch,1 Staple-Free Staple,Staple On Demand
With ExternalFinisher:Collate, Group, Offset, Staple, Booklet,2Staple-Free Staple, Staple On Demand,Hole Punch3
SUPPORTED MEDIA TYPES Paper Cassettes:Thin, Plain, Recycled, Color, Heavy,Pre-punched
Stack Bypass:Thin, Plain, Recycled, Color, Heavy,Pre-punched, Bond, Transparency,Label, Envelope
SUPPORTED MEDIA SIZES Paper Cassette (1):Legal, Letter, Letter-R, Executive, Statement-R, Custom Size(5-1/2" x 7-1/8" to 11-3/4" x 15-3/8")
PaperCassette (2):11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size(5-1/2" x 7-1/8" to 11-3/4" x 15-3/8")Stack Bypass:11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 11-3/4" x 17")
SUPPORTED MEDIA WEIGHTS Paper Drawers:Paper Cassettes:16 lb. Bond to 34 lb. Bond (60 to 128 g/m2)
Stack Bypass:14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
Duplexing:16 lb. Bond to 28 lb. Cover (60 to 105 g/m2)
WARM-UP TIME From Power On:24 Seconds or Less
From Deep Sleep Mode:10 Seconds or Less
Quick Startup Mode:4 Seconds4
DIMENSIONS (W X D X H) 23-1/8" x 29-1/8" x 47" (587 mm x 740 mm x 1,193 mm)5
INSTALLATION SPACE (WXD) Basic [With ADF (Stack Bypass and Cassette Drawers Open)]: 35" x 46-1/2" (889 mm x 1,182 mm)
Fully Configured [With ADF+Paper Deck Unit-F1+Booklet Finisher-Y1 (Cassette Drawers Open)]:71-3/8" x 50-3/8" (1,811 mm x 1,280 mm)
WEIGHT Approx. 240.7 lb. (109.2 kg)6

PRINT SPECIFICATIONS
PRINT SPEED Up to 45 ppm (Letter); Up to 32 ppm (Letter-R); Up to 25 ppm (Legal);Up to 22 ppm (11" x 17")
STANDARD PAGE DESCRIPTION LANGUAGES UFR II, PCL®6, Adobe® PS® 3
DIRECT PRINT Available from USB, Advanced Box, Remote UI,and Web Access (Opt.)7
SUPPORTED FILE TYPES FOR DIRECT PRINT PDF, TIFF, JPEG, EPS, XPS
PRINTING FROM MOBILE AND CLOUD A range of software and MEAP-based solutions are available to provide printing from mobile devices or Internet-connected devices and cloud-based services depending on your requirements.
FONTS PCL fonts:93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),8 Barcode Fonts9
PS fonts:136 Roman
OPERATING SYSTEM10 UFRII:Windows Vista®/Server 2008/Windows® 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.6.8 or later)
PCL:Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10
PS:Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.6.8 or later)
PPD:MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista/Windows 7/Windows 8/Windows 8.1/Windows 10
PRINT FEATURES Suspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secured Print, Forced Hold Printing, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Toner Reduction, Poster Printing

COPY SPECIFICATIONS
COPY SPEED Up to 45 ppm (Letter); Up to 32 ppm (Letter-R); Up to 25 ppm (Legal);Up to 22 ppm (11" x 17")
FIRST-COPY-OUT-TIME As fast as 3.8 seconds
COPY RESOLUTION Reading:Up to 600 dpi x 600 dpi
Printing:1200 dpi x 1200 dpi
MULTIPLE COPIES Up to 999 copies
COPY EXPOSURE Automatic or Manual (9 Levels)
MAGNIFICATION 25%-400% (1% Increments)
PRESET REDUCTIONS 25%, 50%, 64%, 73%, 78%
PRESET ENLARGEMENTS 121%, 129%, 200%, 400%
BASIC COPY FEATURES Preset Reduction/Enlargement Ratios by Area, Paper Setting, Previous Settings, Favorite Settings, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel
SPECIAL COPY FEATURES Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter,Print & Check, Negative/Positive, Repeat Images,Merge Job Blocks, Job Done Notice, Mirror Image,Store in Mail Box, Superimpose Image, Copy ID Card, Detect Feeder Multi Sheet Feed, Free Size Original

SCAN SPECIFICATIONS
TYPE Standard Single Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY Single Pass DADF-A1: 150 Sheets (20 lb. Bond)DADF-AV1: 100 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHT Single Pass DADF-A1
BW Original:13 lb. Bond to 58 lb. Cover(50 to 157 g/m2)
CL Original:17 lb. Bond to 58 lb. Cover(64 to 157 g/m2)

DADF-AV1
BW Original:13 lb. Bond to 34 lb. Bond(50 to 128 g/m2)
CL Original:17 lb. Bond to 34 lb. Bond(64 to 128 g/m2)
PLATEN ACCEPTABLE ORIGINALS Sheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2 kg)]
PULL SCAN Color Network ScanGear2 for both Twain and WIA
Supported OS:Windows Vista/7/8/8.1/10Windows Server 2008/Server 2008 R2/Server 2012/Server 2012 R2
SCAN RESOLUTION 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi, 100 x 100dpi
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES A range of solutions is available to provide scanning tomobile devices and cloud-based services depending onyour requirements.
SCAN SPEED (LETTER) Single Pass DADF-A1
Single-sided Scanning (BW):80 ipm (300 dpi)/80 ipm (600 dpi)
Single-sided Scanning (Color):80 ipm (300 dpi)/60 ipm (600 dpi)
Double-sided Scanning (BW):160 ipm (300 dpi)/150 ipm (600 dpi)
Double-sided Scanning (Color):160 ipm (300 dpi)/80 ipm (600 dpi)

DADF-AV1
Single-sided Scanning (BW):70 ipm (300 dpi)/51 ipm (600 dpi)
Single-sided Scanning (Color):70 ipm (300 dpi)/51 ipm (600 dpi)
Double-sided Scanning (BW):35 ipm (300 dpi)/25.5 ipm (600 dpi)
Double-sided Scanning (Color):35 ipm (300 dpi)/25.5 ipm (600 dpi)

SEND SPECIFICATIONS
DESTINATION E-mail/Internet Fax (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional)
COLOR MODE Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White),Full color, Grayscale, and Black-and-White
ADDRESS BOOK Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White),Full color, Grayscale, and Black-and-White
SEND RESOLUTION 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi,100 x 100dpi
COMMUICATION PROTOCOL File:FTP, SMB v3.0, WebDAV
E-mail/I-Fax:SMTP, POP3, I-Fax (Simple, Full)
FILE FORMAT Standard:TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b), XPS (Compact, Searchable),Office Open XML (PowerPoint®, Word)
Optional:PDF (Trace & Smooth, Encrypted),PDF/XPS (Digital Signature)
UNIVERSAL SEND FEATURES Original Type Selection,Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Originals, Detect Feeder Multi Sheet Feed

FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES 4
MODEM SPEED Super G3:33.6 Kbps
G3:14.4 Kbps
COMPRESSION METHOD MH, MR, MMR, JBIG
RESOLUTION 400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi
SENDING / RECORDING SIZE Statement-R to 11" x 17"
FAX MEMORY Up to 30,000 pages
SPEED DIALS Max. 200
GROUP DIALS / DESTINATIONS Max. 199 dials
SEQUENTIAL BROADCAST Max. 256 addresses
MEMORY BACKUP Yes
FAX FEATURES Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density for Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying the Sender's Name (when sending fax), Sender's Name (TTI), Select Line, Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed

STORE SPECIFICATIONS
MAIL BOX (NUMBER SUPPORTED) 100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored
ADVANCED BOX Communication Protocol: SMB or WebDAVSupportedClient PC:Windows (Windows Vista/7/8/8.1/10)
Concurrent Connections (Max.)
SMB:64
WebDAV:3 (Active Sessions)
ADVANCED BOX AVAILABLE DISC SPACE Approx. 16 GB (Standard HDD)
Approx. 480 GB (1 TB HDD)
ADVANCED BOX FEATURES Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support
MEMORY MEDIA Standard: USB

SECURITY SPECIFICATIONS
AUTHENTICATION Standard:Universal Login Manager, User Authentication, Department ID Authentication, AccessManagement System, Deviceand Function Level Log-in
Optional:uniFLOW
DATA Standard:Trusted Platform Module (TPM),Hard Disk Password Lock, Hard DiskDrive Erase, Mail Box Password Protection, Hard Disk Drive Encryption(FIPS140-2 Validated)
Optional:Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NETWORK Standard:IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
DOCUMENT Standard:Secure Print, Forced Hold Printing,Adobe LiveCycle® Rights Management ES2.5 Integration
Optional:Encrypted PDF, Encrypted Secure Print, User and Device signatures, Secure Watermarks, Document Scan Locking

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT Temperature:50 to 86ºF
Humidity:20 to 80% RH (no condensation)
POWER REQUIREMENTS 120-127 V AC, 60 Hz, 9.3A
PLUG (MAIN UNIT) NEMA 5-15P
POWER CONSUMPTION MaximumApprox. 1.5 kWh
Standby:Approx. 38 W
Sleep Mode:Approx. 0.9 W11
Typical Electricity Consumption (TEC) Rating:2.2 kWh
STANDARDS ENERGY STAR® Certified
Rated EPEAT® Gold12
RoHS Compliant

CONSUMABLES
TONER GPR-57 Toner
TONER YIELD (ESTIMATED @ 6% COVERAGE) Black: 42, 100 Copies



-10%

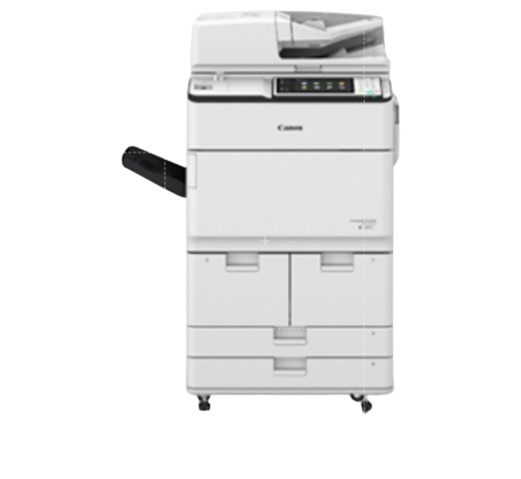

Model Number IR 6575
Resolution 1200 x 1200dpi,600 x 600 dpi
First Copy Time approx.3.1 sec or less
Color Output Black & White
Supported Paper Size A2, A3, A4, A5
Item Weight 234 Kg
Print Technology Laser
Memory Size 3 GB RAM & 250 GB HDD
Input Tray Capacity 1500 Sheets X 2 & 550 Sheets X 2 Tray
Warm-up Time 30 Secs
Power Supply 220V
Number Of Trays 4
Brand Canon
Supported OS Windows 7, Windows 8
Duplexing Yes
Yield 56000 (No. Of Pages)
Warm Up Time 30 seconds or less
Maximum Paper Input Capacity 7,700 sheets (80gsm)
Copy Speed 75ppm(A4),37ppm(A3)
-10%

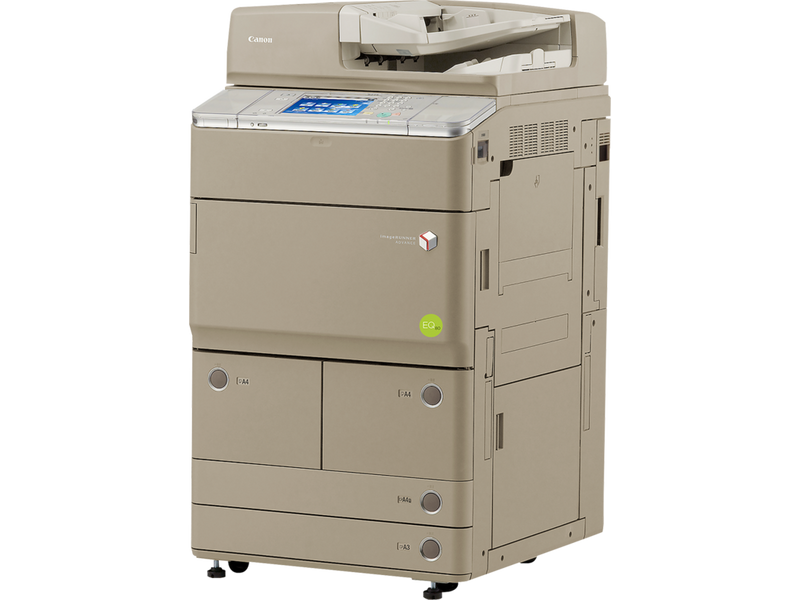

Model Name/Number Canon IR Advance 6275
Print Speed 75
Print Resolution 600x600
Duty Cycle Heavy duty
First Copy Time 7
Color Output Black & White
Supported Paper Size A3
Supported OS Windows 8
Print Technology Laser
Input Tray Capacity 4
Warm-Up Time 7
Warranty Upto 6 Months
I Deal In New and Second Hand
Number Of Trays 4
-10%
Controller CPU Quad Core 1.6GHz
Memory/HDD 8,192 MB/256GB SSD
Print resolution 1,800 (equivalent) x 600 dpi; 1200 x 1200 dpi
Page description languages PCL 6 (XL3.0); PCL 5c; PostScript 3 (CPSI 3016); XPS
Operating systems Windows 7 (32/64); Windows 8.1 (32/64); Windows 10 (32/64);
Windows 11 (32/64); Windows Server 2008 (32/64);
Windows Server 2008 R2; Windows Server 2012;
Windows Server 2012 R2; Windows Server 2016;
Windows Server 2019; Windows Server 2022;
Macintosh OS X 10.10 or later; Unix; Linux; Citrix
Printer fonts 80 PCL Latin; 137 PostScript 3 Emulation Latin
  • All specifications refer to A4-size paper of 80 g/m2 quality.
  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
  • The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (6% coverage of A4).The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that any specifications mentioned will be error-free.
  • All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
-10%
SYSTEM TYPE Monochrome Digital Multifunction Imaging System
FUNCTIONS Standard: Copy, Print (UFR II), Scan, Send, Store
Optional: Print (PCL 5e/6, Adobe® PostScript® 3™), Fax (Up to 4 Lines)
OPERATION PANEL Standard: 8.4" SVGA Full-Color, TFT Screen
Optional: 10.4" SVGA Full-Color, TFT Upright Screen
MEMORY Standard: 1.5GB RAM
Maximum: 2GB RAM
HARD DISK DRIVE Standard: 160GB
Maximum: 1TB
MIRRORING HARD DISK DRIVE Optional (160GB, 1TB), Method: RAID1
NETWORK INTERFACE CONNECTION Standard: 10Base-T/100Base-TX/1000Base-T
Optional: Wireless LAN (IEEE 802.1x via third-party adapter)
OTHER INTERFACE Standard: USB 2.0 (Host) x2, USB 2.0 (Device)
Optional: Device Port [USB 2.0 (Host) x2], Serial Interface, Copy Control Interface
COPY / PRINT SPEED (BW) Letter: Up to 65 ppm
Legal / 11" x 17": Up to 39 / 32 ppm
FIRST-COPY-OUT-TIME (LETTER) 3.3 Seconds or Less
PAPER SOURCES (20 lb. Bond) Standard: Dual 1,500-sheet Paper Drawers, Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass
Optional: 3,500-sheet Paper Deck Unit-A1 or 3,500-sheet Paper Deck Unit-D1
Maximum: 7,700 Sheets (w/Paper Deck Unit Option)
OUTPUT PAPER CAPACITY (LTR, 20LB BOND) Standard: 250 Sheets (w/Copy Tray)
Maximum: 4,000 Sheets (w/Staple Finisher or Booklet Finisher)
ACCEPTABLE PAPER SIZES Drawers: Letter
Cassettes: 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 11-3/4" x 19-1/4")
Bypass: 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4" x 5-7/8" to 11-3/4" x 19-1/4")
ACCEPTABLE PAPER WEIGHTS Drawers/ Cassettes: 14 lb. Bond to 80 lb. Cover (52 to 220g/m2 )
Bypass: 14 lb. Bond to 140 lb. Index (52 to 256g/m2 )
DUPLEXING Paper Size: Standard Automatic Trayless Duplexing (Up to 11" x 17")
Paper Weights:14 lb. Bond to 80 lb. Cover (52 to 220g/m2 )
MEDIA SUPPORT Thin [14 lb. Bond to 16 lb. Bond (52 to 63g/m2 )], Plain [17 lb. Bond to 24 lb. Bond (64 to 90g/m2 )], Heavy 1 [25 lb. Bond to 66 lb. Cover (91 to 180g/m2 )], Heavy 2 [67 lb. Cover to 80 lb. Cover (181 to 220g/m2 )], Heavy 3 [82 lb. Cover to 140 lb. Index (221 to 256g/m2 )], Color, Recycled, Pre-Punched, Transparency, Tracing, Labels, Bond, Letterhead, Tab
WARM-UP TIME From Power On: 30 Seconds or Less
From Sleep Mode: 30 Seconds or Less
Quick Startup Mode: 7 Seconds*
POWER REQUIREMENTS / PLUG 120-127V AC, 60Hz, 16A/NEMA 5-20P
POWER CONSUMPTION Maximum: 1.92kW
Sleep Mode: 0.9W or Less
DIMENSIONS (W X D X H) Without the Upright Control Panel: 48" x 25-3/8" x 30-3/8" (1220mm x 645mm x 770mm)
With the Upright Control Panel (To the right edge of the Upright Control Panel in the right-most position): 49-1/4" x 53-3/8" x 30-3/8"
(1252mm x 1481mm x 770mm)
INSTALLATION SPACE (WXD) Without the Upright Control Panel: 53-5/8" x 30-3/8" (1362mm x 770mm)
With the Upright Control Panel: 74-7/8" x 30-3/8" (1901mm x 770mm)
WEIGHT Approx. 516 lb. (234kg)**

IMAGE READER UNIT
SCAN RESOLUTION Up to 600 x 600 dpi
ACCEPTABLE ORIGINALS (GLASS) Sheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2kg)]
MAXIMUM ORIGINAL SIZE Up to 11" x 17"

DOCUMENT FEEDER
SCAN METHOD Single-Pass Duplexing Automatic Document Feeder
ACCEPTABLE ORIGINALS Paper Sizes: 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R

Paper Weights:
1-sided scanning: 13 lb. Bond to 80 lb. Cover (50 to 220g/m2 )
2-sided scanning (Black-and-white original): 13 lb. Bond to 80 lb. Cover (50 to 220g/m2 )
2-sided scanning (Color original): 17 lb. Bond to 80 lb. Cover (64 to 220g/m2 )
SCAN SPEED (BW / COLOR; LETTER) Simplex: Up to 120/85 ipm (300 dpi) Up to 120/51 ipm (600 dpi)***
Duplex: Up to 200/100 ipm (300 dpi) Up to 120/51 ipm (600 dpi)***
PAPER CAPACITY (20 lb. Bond) 300 Sheets

COPY SPECIFICATIONS
FIRST-COPY-OUT TIME (Letter) 3.3 Seconds or Less
MULTIPLE COPIES 1 to 9,999
COPY EXPOSURE Automatic or Manual (9 Levels)
MAGNIFICATION 25% - 400% (1% Increments)
PRESET REDUCTIONS 25%, 50%, 64%, 73%, 78%
PRESET ENLARGEMENTS 121%, 129%, 200%, 400%
BASIC COPY FEATURES Preset R/E Ratios by Area, Finishing, Two-Sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Sample Set, Setting Confirmation/Cancel, Standard Keys, Reset, Guide Display, Job Duration Display, Reserved Copying
SPECIAL COPY FEATURES Two-page Separation, Cover/Sheet Insertion, Booklet, Transparency Interleaving, Shift, Margin, Frame Erase, Image Combination, Different-size Original, Job Build, Job Done Notice, Scan Image Check, Mode Memory, Recall, Negative/ Positive Inversion, Image Repeat, Mirror Image, Sharpness, Tab Paper Creation, Form Composition, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark and Date, Job Block Combination, Store in User Inbox, Cascade Copy

PRINT SPECIFICATIONS
PROCESSOR Canon Dual Custom Processor (Shared)
MEMORY Standard: 1.5GB RAM
Maximum: 2GB RAM
HARD DISK DRIVE Standard: 160GB
Maximum: 1TB
ENGINE RESOLUTION 1200 x 1200 dpi
PDL SUPPORT Standard: UFR II
Optional: PCL 5e/6, Adobe PS 3
PRINT DRIVERS SUPPORTED OS UFR II, PCL 5e/6, Adobe PS 3:
Windows® (XP/Windows Vista®/7), Windows Server (2003/ 2008/2008 R2/SBS 2011/2012), Windows Terminal Servers (Server 2003/Server 2008/Server 2008 R2/2012), Microsoft® Clustering Server (Server 2003/Server 2003 R2/Server 2008/ Server 2008 R2), Citrix (Presentation Server 4.5, Xen App 5.0/6.0/6.5, Xen Desktop 4.0/5.0/5.5), Macintosh® (OS X 10.5.8 or later, UFR II and PS 3 only), VMware, SAP (PS and PCL Only)
DIRECT PRINT SUPPORT Standard: TIFF (BW), JPEG
Optional: PDF, EPS****, XPS†
PRINT FEATURES Suspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secure Print, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Toner Reduction, Poster Printing

SCAN SPECIFICATIONS
NETWORK TWAIN SCAN Standard
NETWORK SCAN UTILITY Color Network ScanGear

UNIVERSAL SEND SPECIFICATIONS
SENDING METHOD E-mail, I-Fax, File Server (FTP, SMB, WebDAV), Mail Box, Super G3 Fax (Optional)
COLOR MODE Auto Color Select (Full Color, Grayscale), Auto Color Select (Color, BW), Full Color, Grayscale, BW
SCAN RESOLUTION*** 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi, 100 x 100 dpi
ADDRESS BOOK CAPACITY Max. 1,800 Destinations (Incl. 200 One-Touch Buttons)
COMMUICATION PROTOCOL File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full)
FILE FORMAT Standard: TIFF (BW), JPEG, PDF, PDF (Compact), PDF (Apply Policy), PDF (Optimize for Web), PDF/XPS (OCR), PDF/A-1b, XPS, XPS (Compact), OOXML (.pptx)
Optional: PDF (Trace & Smooth), PDF (Encrypted), PDF/XPS (Digital Signature), PDF (Reader Extensions)
I-FAX DATA FORMAT BW: TIFF (MH, MR, MMR)
Color: TIFF (Profile-C)
UNIVERSAL SEND FEATURES Two-sided Original, Different-size Originals, Original Type Selection, Book to Two Pages, Density Adjustment, Sharpness, Document Name, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-to, Sender's Name (TTI), E-mail Priority

FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES 4
MODEM SPEED Super G3: 33.6 Kbps
G3: 14.4 Kbps
COMPRESSION METHOD MH, MR, MMR, JBIG
RESOLUTION 400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi
SENDING / RECORDING SIZE Statement-R to 11" x 17"
FAX FEATURES Job Forwarding, Different-size Originals, Adjusting Overall Density for Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying the Sender's Name (when sending fax), Selecting the Telephone Line (when sending fax), Delayed Send, Preview, Finished Stamp, Job Done Notice, Original Type Selection, Two-sided Original, Book to Two Pages

STORE SPECIFICATIONS
MAIL BOX (NUMBER SUPPORTED) 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes
20,000 Maximum Pages Stored
ADVANCED BOX Available Disk Space: Approx. 15GB (Standard HDD) Approx. 629GB (1TB HDD)
Communication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 2000/XP/7/Windows Vista)
Concurrent Connections (Max.): SMB: 32, WebDAV: 12 (Active Sessions)

Advanced Box Features: Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support
MEMORY MEDIA Standard: USB Memory
Optional: SD, SDHC, CompactFlash, Memory Stick, Microdrive

SECURITY SPECIFICATIONS
STANDARD Department ID Management, Single Sign-On H, Access Management System (Device and Function Level Log-in), Secure Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPv6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPsec, Adobe LiveCycle® Rights Management ES2.5 Integration
OPTIONAL Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification††

ENVIRONMENTAL INFORMATION
ENERGY STAR® Qualified
EU RoHS Compliant
Ecomark
Blue Angel
WEEE Directive


CONSUMABLES
TONER GPR-38 Toner
TONER YIELD (ESTIMATED @ 6% COVERAGE) Black: 56,000 Copies/Bottles
-10%

Machine Type

A3 Colour Laser Multifunctional

Core Functions

Print, Copy, Scan, Send, Store and Optional Fax

Processor

Canon Dual Custom Processor (Shared)

Control Panel

10.1 inch TFT LCD WSVGA Colour Touch panel

Memory

Standard: RAM 3.5 GB
Main CPU Side: 2 GB
Image Processing CPU Side: 1 GB + 0.5 GB (reserved for image processing)

Storage

Standard: (SSD) 256 GB
Optional: (SSD) 1 TB

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T,
Optional: Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80 gsm)

Standard: 1,200 sheets
Multi-purpose Tray: 100 sheets
2x Standard Cassette: 550 sheets

Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)

Paper Output Capacity (A4, 80 gsm)

Standard: 250 sheets
Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)

Supported Media Types

Multi-purpose Tray:
Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, Postcard

Upper Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, Postcard

Lower Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard

Supported Media Sizes

Multi-purpose Tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL

Supported Media Weights

Multi-purpose Tray: 52 to 300 gsm*5
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm

Warm-up Time
(Quick start mode: ON)

Quick Startup Mode: 4 seconds or less*6
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*7

Dimensions (W x D x H)

With Platen Cover-Y3: 565 x 692 x 788 mm
With Single Pass DADF-C1: 565 x 722 x 897 mm
With DADF-BA1: 565 x 719 x 891 mm

Installation Space (W x D)

Basic:
978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened)
978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + paper cassette opened)

Fully Configured:
1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened)
1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened)

Weight
Including Toner

With Platen Cover-Y3: Approx. 73 kg
With DADF-BA1: Approx. 79 kg
With Single Pass DADF-C1: Approx. 86 kg

-10%

Machine Type

A3 Monochrome Laser Multifunctional

Core Functions

Print, Copy, Scan, Send, Store and Optional Fax

Processor

Canon Dual Custom Processor (Shared)

Control Panel

10.1 inch TFT LCD WSVGA Colour Touch panel

Memory

Standard: RAM 3.5 GB
Main CPU Side: 2 GB
Image Processing CPU Side: 1 GB + 0.5 GB (reserved for image processing)

Storage

Standard: (SSD) 256 GB
Optional: (SSD) 1 TB

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T
Optional: Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80 gsm)

Standard: 1,200 sheets
100 sheets Multi-purpose tray
2 x 550 sheets Standard Cassette

Maximum: 3,650 sheets (with High Capacity Cassette Feeding Unit-E1)

Paper Output Capacity (A4, 80 gsm)

Standard: 250 sheets
Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)

Supported Media Types

Multi-purpose tray:
Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, Postcard

Upper Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, Postcard

Lower Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard

Supported Media Sizes

Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5

 Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4 COM10 No.10, Monarch, DL

Supported Media Weights

Multi-purpose tray: 52 to 300 gsm*5
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm

Warm-up Time
(Quick Start Mode: ON)

Quick Startup Mode: 4 seconds or less*6
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*7

Dimensions (W x D x H)

With Platen Cover-Y3: 565 x 692 x 788 mm
With Single Pass DADF-C1: 565 x 722 x 897 mm
With DADF-BA1: 565 x 719 x 891 mm

Installation Space (W x D)

Basic:
978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened)
978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + Paper cassette opened)

Fully Configured:
1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened)
1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened

Weight Including Toner

With Platen Cover-Y3: Approx. 62 kg
With DADF-BA1: Approx. 69 kg
With Single Pass DADF-C1: Approx. 75 kg

-10%

Machine Type

A3 Colour Laser Multifunctional

Core Functions

Print, Copy, Scan, Send and Optional Fax

Control Panel

17.78 cm TFT LCD WVGA Colour Touch panel

Memory

Standard: 2.0 GB RAM

Storage

Standard: 64 GB eMMC (available space 30 GB)
Optional: 256 GB SSD

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1

Paper Supply Capacity (A4, 80 g/m2 (gsm))

Standard: 1,200 sheets
(100 sheets Multi-purpose Tray
2 x 550 sheets paper cassette)

Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)

Paper Output Capacity (A4, 80 g/m2 (gsm))

Standard: 250 sheets
Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)

Supported Media Types

Multi-purpose Tray:
Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, Postcard

Upper Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, Postcard

Lower Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard

Supported Media Sizes

Multi-purpose Tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL

Supported Media Weights

Multi-purpose Tray:
52 to 300 g/m2 (gsm)*1 *5

Upper/Lower Cassette:
52 to 256 g/m2 (gsm)

Duplex:
52 to 220 g/m2 (gsm)

Warm-up Time (Quick start mode: ON)


4 Seconds or Less*6
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*7

Dimensions (W x D x H)

With Platen Cover-Y3: 565 x 659 x 788 mm
With DADF-BA1: 565 x 687 x 891 mm

Installation Space (W x D)

978 x 1,088 mm (with Platen Cover-Y3 + right door & multi-purpose tray opened + paper cassette opened)

1,286 x 1,116 mm (with DADF-BA1 + Inner Finisher-L1 + Copy Tray-T2 extended + paper cassette open)

Weight Including Toner

With Platen Cover-Y3: Approx. 71 kg
With DADF-BA1: Approx. 78 kg

Print

Print Speed (BW)

iR C3326:
1-sided: Up to 26 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R)
2-sided: Up to 26 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R)

Print Resolution (dpi)

600 × 600,
1,200 × 1,200 (half-speed)

Page Description Languages

Standard: UFR II, PCL6 (Optional)
Option: Adobe®, PostScript®3™, I

Direct Print (RUI)

PDF, EPS, TIFF/JPEG, XPS

Printing from Mobile and Cloud Application

AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print

OS Standard Printing

Android, Windows® 10/11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS

Fonts

PS fonts: 136 Roman
PCL(optional) fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9

Operating System

UFR II: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later)

PCL(optional): Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022

PS: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later)

PPD: Windows® 10/11, macOS (10.13 or later)

Copy

Copy Speed

iR C3326
1-sided: Up to 26 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R)
2-sided: Up to 26 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R)

First-Copy-Out Time (A4)

iR C3326: Approx. 7.0/8.7 seconds or less

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%

-10%

Machine Type

A3 Monochrome Laser Multifunctional

Core Functions

Print, Copy, Scan, Send and Optional Fax

Control Panel

17.78 cm TFT LCD WVGA Colour Touch panel

Memory

Standard: 2.0 GB RAM

Storage

Standard: 64 GB eMMC (available space 30 GB)
Optional: 256 GB SSD

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1

Paper Supply Capacity (A4, 80 g/m2 (gsm))

Standard: 1,200 sheets
(100 sheets Multi Purpose Tray
2 x 550 sheets paper cassette)
Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)

Paper Output Capacity (A4, 80 g/m2 (gsm))

Standard: 250 sheets
Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)

Supported Media Types

Multi-purpose Tray:
Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, Postcard

Upper Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, Postcard

Lower Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard

Supported Media Sizes

Multi-purpose Tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL

Supported Media Weights

Multi-purpose Tray:
52 to 300 g/m2 (gsm)*1 *5

Upper/Lower Cassette:
52 to 256 g/m2 (gsm)

Duplex:
52 to 220 g/m2 (gsm)

Warm-up Time (Quick start mode: ON)


4 Seconds or Less*6
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*7

Dimensions (W x D x H)

With DADF-BA1 (iR2945): 565 x 687 x 891 mm
With DADF-AZ2 (iR2930/iR2925): 565 x 693 x 852 mm

Installation Space (W x D)

iR2945:
1,286 x 1,116 mm (with DADF-BA1 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened)

iR2930/iR2925:
1,286 x 1,122 mm (with DADF-AZ2 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened)

Weight Including Toner

With DADF-BA1 (iR2945i/iR2935i): Approx. 67 kg
With DADF-AZ2 (iR2930i/iR2925i): Approx. 66 kg

-10%

Machine Type

A3 Monochrome Laser Multifunctional

Core Function

Print, Copy, Scan, Send, Store and Optional Fax

Processor

Canon Dual Custom Processor (Shared)

Control Panel

10.1mm TFT LCD WSVGA Color Touch panel

Memory

RAM:
- Main CPU: 2 GB
- Image Processing CPU: 2 GB + 1 GB*1

Storage

Standard: (SSD) 256 GB
Optional: (SSD) 1 TB

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n);
Optional: Bluetooth Low Energy

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80 g/m2 (gsm))

Standard: 1.200 sheets
1 x 100-sheet multi-purpose tray
2 x 550-sheet cassettes
Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-C1 + Paper Deck Unit-F1)

Paper Output Capacity (A4, 80 g/m2 (gsm))

Standard: 250 sheets
Maximum: 3,450 sheets (with Staple Finisher-AB2 or Fold & Book Finisher-A1 and 3rd Copy Tray Kit-A1)

Finishing Capabilities*2

Standard: Collate, Group
With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple-On-Demand, V-fold, C-fold, Z-fold

Supported Media Types

Multi-purpose tray:
Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope

Paper Cassette (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*3

Supported Media Sizes

Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Envelopes: COM 10 No.10, Monarch, DL, ISO-C5
Envelope custom size: 98.0 x 90.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5

Supported Media Weights

Multi-purpose tray: 52 to 300 g/m2 (gsm)
Paper Cassette (Upper/Lower): 52 to 256 g/m2 (gsm)
Duplex: 52 to 256 g/m2 (gsm)

Warm-up Time
(Quick start mode: ON)

Quick Startup Mode: 4 Seconds or less*4

From Sleep Mode:
7 Seconds or Less (iR-ADV DX 6870i)
6 Seconds or Less (iR-ADV DX 6860i)
6 Seconds or Less (iR-ADV DX 6855i)

From Power On: 6 Seconds or less*5

Dimensions (W x D x H)

620 x 722 x 937 mm

Installation Space (W x D)

Basic: 1,138 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
Fully Configured: 1,866 x 1,162 mm (Staple Finisher-AB2/Fold & Book Finisher-A1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)

Weight*6

iR-ADV DX 6855i: Approx. 94 kg

Print

Print Speed (BW)

iR-ADV DX 6855i
Up to 55 pages/min (A4, A5*7, A5R, A6R*7), up to 29 pages/min (A3), up to 36 pages/min (A4R)

Print Resolution (dpi)

1,200 x 1,200

Page Description Languages

Standard: UFR II, PCL6
Optional: Adobe® PostScript® 3™

Direct Print

Supported file types: PDF, EPS, TIFF/JPEG and XPS

Printing from Mobile and Cloud

AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print

Fonts

PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9

Operating System

UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later)
PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022
PS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later)
PPD: Windows® 8.1/10/11, Mac OS X(10.11 or later)

As of Jan. 2022

Copy

Copy Speed (BW)

iR-ADV DX 6855i
Up to 55 pages/min (A4, A5*7, A5R, A6R*7), up to 29 pages/min (A3), up to 36 pages/min (A4R)

First-Copy-Out Time (A4, BW)

iR-ADV DX 6855i: Approx. 2.9 seconds or less

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 9,999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%

-10%

Machine Type

A3 Color Laser Multifunctional

Core Function

Print, Copy, Scan, Send, Store and Optional Fax

Processor

Canon Dual Custom Processor (Shared)

Control Panel

25.64cm (10.1in) TFT LCD WSVGA Color Touch panel

Memory

RAM: Main CPU: 2GB
Image Processing CPU: 2GB + 1GB*1

Storage

Standard: (SSD) 256GB
Optional: (SSD) 1TB

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n);
Optional: NFC, Bluetooth Low Energy

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80g/m2)

Standard: 1 200 sheets
100-sheet Multi-purpose tray x 1
550-sheet Paper cassette x 2,
Maximum: 6 350 sheets (with High Capacity Cassette Feeding Unit-C1 + Paper Deck Unit-F1)

Paper Output Capacity (A4, 80g/m2)

Standard: 250 sheets
Maximum: 3,450 Sheets (with Staple Finisher-AB1 or Booklet Finisher-AB1 and 3rd Copy Tray Kit-A1)

Finishing Capabilities*2

Standard: Collate, Group
With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand

Supported Media Types

Multi-purpose tray:
Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope

Paper Cassette (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*3

Supported Media Sizes

Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Envelopes: COM 10 No.10, Monarch, DL, ISO-C5
Envelope custom size: 98.0 x 90.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5

Supported Media Weights

Multi-purpose tray: 52 to 300g/m2
Paper Cassette (Upper/Lower): 52 to 256g/m2
Duplex: 52 to 256 g/m2

Warm-up Time

Quick Startup Mode: 4 Seconds or less*4

From Sleep Mode:
7s or Less (iR-ADV DX C5870i)
6s or Less (iR-ADV DX C5860i/C5850i/C5840i)

From Power On: 6s or less*5

Dimensions (W x D x H)

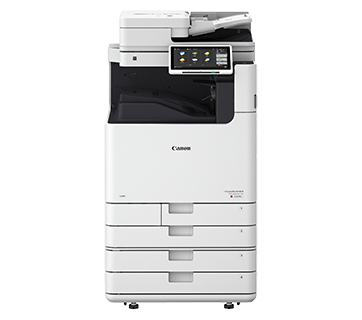

iR-ADV DX C5870i/C5860i/C5850i/C5840i: 620 x 722 x 937 mm

Installation Space (W x D)

iR-ADV DX C5870i/C5860i/C5850i/C5840i:
Basic: 1 138 x 1 162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
Fully Configured: 1 866 x 1 162 mm (Staple Finisher-AB1/Booklet Finisher-AB1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)

Weight*6

iR-ADV DX C5870i: Approx. 110 kg
iR-ADV DX C5860i/C5850i: Approx. 107 kg
iR-ADV DX C5840i: Approx. 106 kg

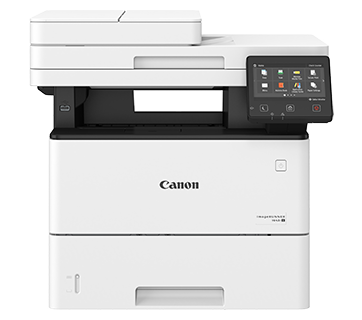

-10%

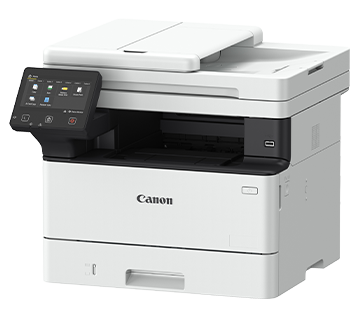

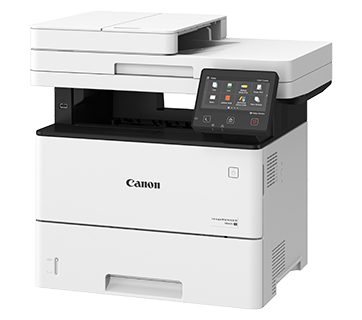

Machine Type

Monochrome A4 Laser Multifunctional

Core Function

iR 1643iF II: Print, Copy, Scan, Send and Fax
iR 1643i II: Print, Copy, Scan and Send

Control Panel

12.7 cm (5in) TFT LCD WVGA Colour Touch panel

Memory

Standard: 1.0 GB RAM

Storage

eMMC: 2 GB

Interface Connection

NETWORK:
1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n), Wi-Fi Direct Connection

OTHERS:
USB 2.0 (Host) x2, USB 2.0 (Device) x1

Memory Media

USB Memory

Network Security

TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN

Document Security

Print Security (Secure Print, uniFLOW Secure Print*1), Scan Security (Encrypted PDF, Device Signature PDF/XPS), Send Data Security (Restricted E-mail/File send functions, Security Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History)

Paper Supply Capacity (A4, 80 g/m2)

Standard:
Paper Cassette: 550 sheet
Multi-purpose tray: 100 sheet
Maximum: 2,300 sheets (with PAPER FEEDER PF-C1x3)

Paper Output Capacity (A4, 80 g/m2)

Standard: 150 sheets

Toner

Toner T06 Black

Supported Media Sizes

Upper Cassette 1:
Standard size: A4, B5, A5, A5R, A6
Custom size: Minimum 105.0 x 148.0 mm up to 216.0 x 355.6 mm

Multi-purpose tray:
Standard size: A4, B5, A5, A5R, A6
Index Card, Envelopes [No. 10 (COM 10), Monarch, ISO-C5, DL]
Custom Size: Minimum 76.2 x 127.0 mm up to 216.0 x 355.6 mm

Supported Media Weights

Upper Cassette 1: 60 to 120 g/m²
Multi-purpose tray: 60 to 199 g/m²
Duplex: 60 to 120 g/m²

Warm-up Time

From Power On: 14s or Less*2
From Sleep Mode: 4s or Less

Dimensions (W x D x H)

480 x 464 x 452 mm

Installation Space (W x D)

480 x 905 mm (With cassette open)

Weight

Standard: Approx. 20.0 kg (Including toner)

-10%

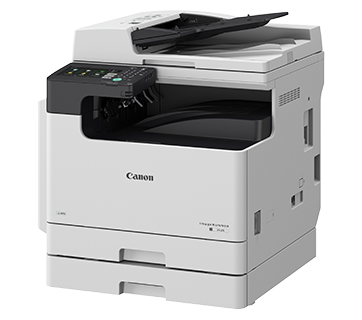

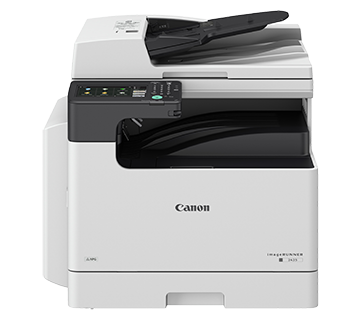

Robust and powerful A3 black and white multifunction printers

Copier Type A3 Monochrome Laser Multifunctional
Functions Standard: Print, Copy, Scan, Send, Fax
Speed Print Speed : Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
Resolution 600 x 600 dpi
Memory Standard: 2.0GB RAM ; Use area: 30GB (eMMC)
Warm-Up Time 4 Seconds or Less ; From Sleep Mode: 10 seconds or less 12 Seconds or Less
First Page Out Time Approx. 7.4 seconds or less
Media Type Multi-purpose Tray: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Label, Pre-punched, Envelope ; Paper Cassette: Plain, Recycled, Colour, Pre-punched
Media Size Multi-purpose tray: Standard size: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL] Custom Size/Free Size: Min. 95.0 x 139.7 mm up to 297.0 x 431.8 mm ; Paper Cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Media Weight Multi-purpose tray: 60 to 157 gsm; Paper Cassettes: 64 to 90 gsm ; Duplex: 60 to 90 gsm
Scanner Type iR 2425 : Standard Platen Cover ; Scan Method : Push scan, Pull scan, Scan to Network, Scan to memory media (USB Memory Key), Scan to Mobile Devices, Scan to cloud-based services (uniFLOW) ; Scan Speed (ipm: BW/CL, A4) DADF: 1-sided Scanning: 35/25 (300 dpi, send), 25/13 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8/4 (600 dpi, copy)
Fax Features Maximum Number of Connection Lines : 1 ; FAX memory : Up to 30,000 pages
Modem Speed Super G3: 33.6 kbps G3: 14.4 kbps
Speed Dial Max. 200
Address Book Capacity LDAP (2,000)/Local (1,600)/Speed dial (200)
Network Interface Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Control Panel 7 inch TFT LCD WVGA color Touch panel
OS Compatibility UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later) PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019 PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later) PPD: Windows® 7/8.1/10, MAC OS X (10.10 or later) Windows®/MAC OS: As of March, 2020
Power Power Source : 220-240V 50/60Hz 2.7A
Advanced Features Copy Speed (BW) : Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) ; First-Copy-Out Time (A4) (BW) : Approx. 7.4 seconds or less ; Copy resolution (dpi) : 600 × 600 : Multiple Copies : Up to 9,999 copies ; Copy Density : Automatic or Manual (9 Levels) ; Magnification : 25% - 400% (1% Increments) ; Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400% ; Copy Features : Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Gutter, Copy ID Card, Free Size Original, Reserved copy, Copy Sample
Power Consumption Maximum: Approx. 1,500 W ; Standby: Approx. 22.1 W ; Sleep Mode: Approx. 1 W, Approx. 2 W
Interface Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1
Dimension (WxDxH) With Platen Cover-AA1: 627 x 665 x 516 mm With DADF-AZ2: 627 x 692 x 616 mm
Weight With Platen Cover-AA1: Approx. 34.9 kg including toner With DADF-AZ2: Approx. 39.9 kg including toner

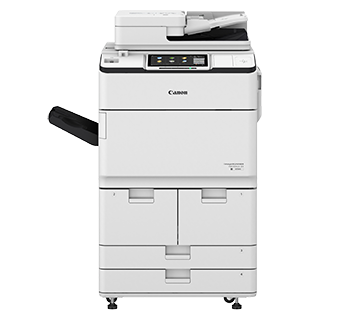

-10%

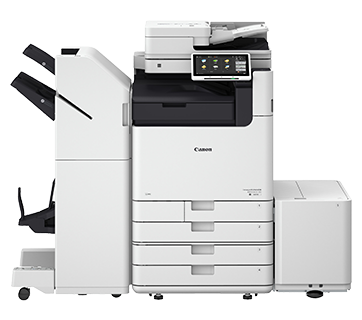

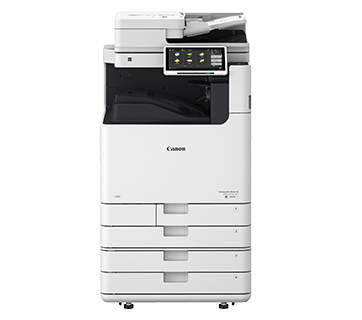

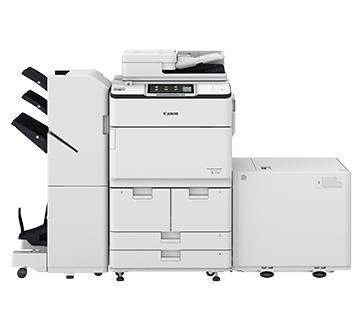

Machine Type

A3 Monochrome Laser Multifunctional

Core Functions

Print, Copy, Scan, Send, Store and Optional Fax

Processor

Canon Dual Custom Processor (Shared)

Control Panel

Standard: 25.654cm (10.1in) TFT LCD WSVGA Colour Touch panel
Optional: 26.416cm (10.4in) TFT LCD SVGA Colour Upright Touch panel

Memory

Standard: 3.0Gb RAM

Hard Disk Drive

Standard*1: 320Gb (available disk space: 250Gb)
Optional: 250Gb, 1TB

Mirroring Hard Disk Drive

Optional

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80g/m²)

Standard:
4 200 sheets
100-sheet Multi-purpose tray x 1
1 500-sheet Paper Deck x 2
550-sheet Paper Cassette x2

Maximum:
7 700 sheets (with Paper Deck Unit-E1 or POD Deck Lite-C1)

Paper Output Capacity (A4, 80g/m²)

250 Sheets (with Copy Tray-R2)
Maximum: 3 500 Sheets (with Staple Finisher-AC1 or Booklet Finisher-AC1)

Finishing Capabilities

With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, C-fold

Supported Media Types

Multi-purpose tray:
Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab

Paper Decks (Right/Left):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead

Paper Cassettes (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead, Tab*2

Supported Media Sizes

Multi-purpose tray:
Standard size: A3, A4, A4R, A5*3, A5R, A6R*4, B4, B5, B5R
Custom size: 100.0 x 148.0 mm to 297.0 x 487.7 mm
Free size: 100.0×148.0mm to 297.0mm×487.7mm

Paper Decks (Right/Left):
Standard size: A4, B5

Paper Cassettes (Upper/ Lower):
Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Custom size: 139.7 x 182.0 mm to 297 x 487.7 mm

Supported Media Weights

Multi-purpose tray: 52 to 256g/m²
Paper Deck (Right/Left): 52 to 220g/m²
Paper Cassette (Upper/Lower): 52 to 220g/m²
Duplex: 52 to 220g/m²

Warm-up Time

Quick Start-up Mode: 4ss or less*5
From Sleep Mode: 30s or less
From Power On: 30s or less*6

Dimensions (W x D x H)

670 x 770 x 1 185 mm
With optional Upright Control Panel:
1 170 x 770 x 1 252mm

Installation Space (W x D)

Basic: 1 533 x 1 353mm (with Multi-purpose tray/upper-right cover open + Front cover open + Copy Tray) Fully configured: 2 436 x 1 353mm (with POD Deck Lite-C1 + Document Insertion/Folding Unit-J1 + Booklet Finisher-AC1/Staple Finisher-AC1 + Main unit Front cover open )

Weight

iR-ADV DX 6780i/6765i/6755i: Approx. 219kg*7, Approx. 223kg*8

Print

Print Speed

iR-ADV DX 6780i:
Up to 80 pages per minute (A4), up to 40 pages per minute (A3), up to 58 pages per minute (A4R), up to 35 pages per minute (A5R)

iR-ADV DX 6765i:
Up to 65 pages per minute (A4), up to 32 pages per minute (A3), up to 47 pages per minute (A4R), up to 35 pages per minute (A5R)

iR-ADV DX 6755i:
Up to 55 pages per minute (A4), up to 32 pages per minute (A3), up to 40 pages per minute (A4R), up to 35 pages per minute (A5R)

Print Resolution (dpi)

1 200 x 1 200

Page Description Languages

Standard: UFR II, PCL6
Optional: Adobe®PostScript®3™

Direct Print

Supported file types: PDF, EPS, TIFF/JPEG, and XPS

Printing from Mobile and Cloud

AirPrint, Mopria, Google Cloud Print, Canon Business PRINT and uniFLOW Online

A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.

Fonts

PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*9 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*10

Print Features

Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

Operating System

UFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019


PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later)

As of July, 2019.

Copy

Copy Speed

iR-ADV DX 6780i:
Up to 80 pages per minute (A4), up to 40 pages per minute (A3), up to 58 pages per minute (A4R), up to 35 pages per minute(A5R)

iR-ADV DX 6765i:
Up to 65 pages per minute (A4), up to 32 pages per minute (A3), up to 47 pages per minute (A4R), up to 35 pages per minute (A5R)

iR-ADV DX 6755i:
Up to 55 pages per minute (A4), up to 32 pages per minute (A3), up to 40 pages per minute (A4R), up to 35 pages per minute (A5R)

First-Copy-Out Time (A4)

iR-ADV DX 6780i: Approx. 3.1s or less
iR-ADV DX 6765i: Approx. 3.3s or less
iR-ADV DX 6755i: Approx. 3.3s or less

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)

Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%

Copy Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample

Scan

Type

Single-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)]

Detect Feeder Multi Sheet Feed is supported.

Document Feeder Paper Capacity (80g/m²)

Up to 200 Sheets

Acceptable Originals and Weights

Platen: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
1-sided scanning: 38 to 220g/m² (Black & White, Colour)
2-sided scanning: 38 to 220g/m² (Black & White, Colour)

An acceptable weights of A6R or smaller is 50 to 220g/m²

Supported Media Sizes

Platen max. scanning size: up to 297.0 x 431.8 mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R


Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm

Scan Speed (images per minute, (Black & White/ Colour), A4)

1-sided Scanning:
135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)

2-sided Scanning:
270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

Scan Resolution (dpi)

Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016

Scan Method

Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online)

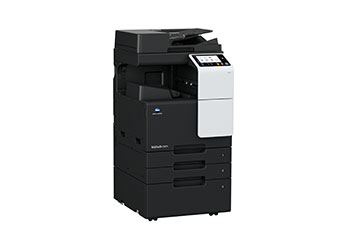

-10%

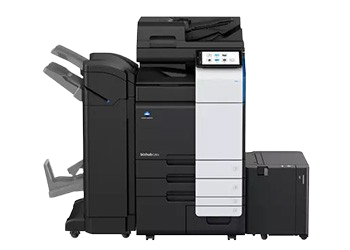

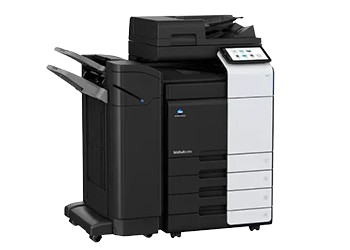

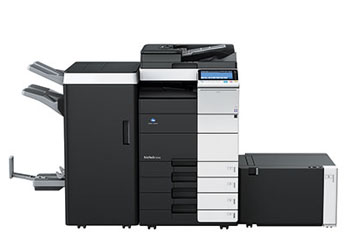

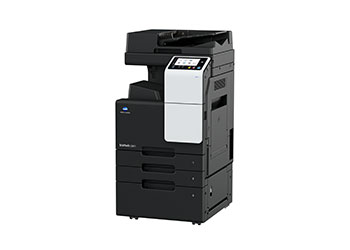

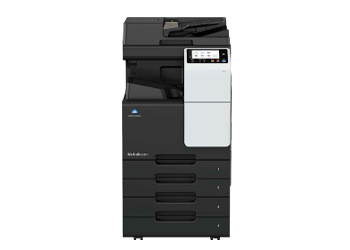

Print resolution 1,800 (equivalent) x 600 dpi; 1200 x 1200 dpi
Page description language PCL 6 (XL3.0); PCL 5c; PostScript 3 (CPSI 3016); XPS
Operating systems Windows 10 (32/64); Windows 11; Windows Server 2012;
Windows Server 2012 R2; Windows Server 2016;
Windows Server 2019; Windows Server 2022;
macOS 10.14 or later; Unix; Linux; Citrix
Printer fonts 80 PCL Latin; 137 PostScript 3 Emulation Latin;
Barcode fonts (optional); OCR A and B fonts (optional);
Unicode fonts (optional)
Mobile printing AirPrint (iOS); Mopria (Android);
Konica Minolta Mobile Print (iOS/Android);
optional: WiFi Direct



System speed A4 C451i Up to 45/45 ppm (mono/colour)
System speed A3 C451i Up to 22/22ppm (mono/colour)
Autoduplex speed A4 Up to 45/45 ppm (mono/colour))
1st page out time A4 C451i 3.8/5.0 sec. (mono/colour)
Warm-up time Approx. 12/13 sec. (mono/colour)1
Imaging technology Laser Laser
Toner technology Simitri® V polymerised toner
Panel size/resolution 10.1” / 1024 x 600
System memory 8,192 MB (standard/max)
System hard drive 256 GB SSD (standard) / 1 TB SSD (optional)
Interface 10/100/1,000-Base-T Ethernet; USB 2.0;
Wi-Fi 802.11 b/g/n/ac (optional)
Network protocols TCP/IP (IPv4 / IPv6); SMB; LPD; IPP; SNMP; HTTP(S); Bonjour
Automatic document feeder (optional) Up to 300 originals; A6–A3; 35–210 g/m2
Dualscan ADF
ADF double feed detection Standard
Printable paper size A6-SRA3; customized paper sizes;
banner paper max. 1,200 x 297 mm
Printable paper weight 52-300 g/m2
Paper input capacity 1,250 sheets / 7,300 sheets (standard/max)
Paper tray input (standard) 1x 550 sheets; A6–A3;custom sizes; 52–256 g/m2
1x 550 sheets; A5–SRA3;custom sizes; 52–256 g/m2
Paper tray input (standard) 1x 550 sheets; A5–A3; 52–256 g/m2
2x 550 sheets; A5–A3; 52–256 g/m2
1x 2,750 sheets; A4; 52–256 g/m2
1x 1,650 sheets; 1x1,100 Sheets; A5–A4; 52–256 g/m2
Large capacity Tray (optional) 1x 3300; A4; 52–256 g/m2
1x 2,750; A4-SRA3; custom sizes; 52-256 g/m2
Manual bypass 150 sheets, A6-SRA3, custom sizes; banner; 60-300 g/m2
Finishing modes (optional) Offset; Group; Sort; Staple; Staple (offline); Punch; Half-fold;
Letter-fold; Booklet; Post insertion; Z-fold
Automatic duplexing A6-SRA3; 52-256 g/m2
Output capacity Up to 250 sheets / up to 3,300 sheets(standard/max)
Stapling Max 100 sheets or 98 sheets+ 2 cover sheets (up to 300 g/m2)
Stapling output capacity Max. 200 sets
Letter fold Max. 3 sheets
Letter fold capacity Max. 50 sets; unlimited (without tray)
Booklet Max 20 sheets or 19 sheets+ 1 cover sheets (up to 300 g/m2)
Booklet output capacity Max. 35 booklets; unlimited (without tray)
Duty cycle (monthly) Rec. 40,000 pages; Max.2 200,000 pages
Toner lifetime Black up to 28,000 pages
CMY up to 28,000 page
Imaging unit lifetime Black up to 240,000/1,000,000 pages (drum/developer)
CMY up to 155,000/1,000,000 pages (drum/developer)
Power consumption 220–240 V / 50/60 Hz; Less than 1.58 kW
System dimension (W x D x H) 615 x 688 x 961 mm (without options)
System weight Approx. 100.0 kg (without options)

* Tray Capacity is calculated on 75 GSM Media.

-10%
Panel size/resolution 10.1” / 1024 x 600
System memory (standard/max) 8,192 MB
System hard drive 256 GB SSD (standard)
Interface 10/100/1,000-Base-T Ethernet; USB 2.0; Wi-Fi 802.11 b/g/n (optional)
Network protocols TCP/IP (IPv4/IPv6); SMB; LPD; IPP; SNMP; HTTP(S); AppleTalk; Bonjour
Automatic document feeder (optional) Up to 100 originals; A6–A3; 35–163 g/m²; RADF or Dualscan ADF available
Paper input capacity (standard/max) 1,250 sheets / 7,300 sheets
Paper tray input (standard) 1x 550 sheets; A6–A3; custom sizes; 52–256 g/m² 1x 550 sheets; A5–SRA3; custom sizes; 52–256 g/m²
Paper tray input (optional) 1x 550 sheets; A5–A3; 52–256 g/m² 2x 550 sheets; A5–A3; 52–256 g/m² 1x 2,750 sheets; A4; 52–256 g/m²
Large capacity tray (optional) 1x 3,300 sheets; A4; 52–256 g/m²
Manual bypass 150 sheets; A6–SRA3; custom sizes; Banner; 60–300 g/m²
Automatic duplexing A5–SRA3; 52–256 g/m²
Finishing modes (optional) Ofset; Group; Sort; Staple; Punch; Half-fold; Letter-fold; Booklet
Output capacity (standard) Max. 250 sheets
Output Capacity (optional) Max. 3,300 sheets
Stapling Max. 50 sheets or 48 sheets + 2 cover sheets (up to 209 g/m²)
Letter fold Max. 3 sheets
Letter fold capacity Max. 30 sheets; unlimited (without tray)
Booklet Max. 20 sheets or 19 sheets + 1 cover sheet (up to 209 g/m²)
Booklet output capacity Max. 100 booklets; unlimited (without tray)
Power consumption 220–240 V / 50/60 Hz; Less tdan 1.58 kW
System dimension (W x D x H) 615 x 688 x 779 mm (without options)
System weight Approx. 84.0 kg (without options)
-10%







Print resolution 1,800 (equivalent) x 600 dpi
Print Speed A4 (mono/colour)
C287i, C227i
Up to 28/28ppm, up to 22/22ppm
Page description language PCL 6 (XL3.0); PCL 5c; PostScript 3 (CPSI 3016); XPS
Operating systems Windows 7 (32/64); Windows 8.1 (32/64); Windows 10 (32/64);
Windows Server 2008 (32/64); Windows Server 2008 R2;
Windows Server 2012; Windows Server 2012 R2;
Windows Server 2016; Windows Server 2019;
Macintosh OS X 10.10 or later; Unix; Linux; Citrix
Printer fonts 80 PCL Latin; 137 PostScript 3 Emulation Latin
Mobile printing

AirPrint (iOS); Mopria (Android);
Konica Minolta Mobile Print (iOS/Android/Windows 10 Mobile);
Mobile Authentication and Pairing (iOS/Android); WiFi Direct



Imaging technology Laser Toner technology Simitri® HD polymerised toner Copy/print speed A4 (mono/colour)
C287i, C227i
Simplex Up to 28/28ppm, up to 22/22ppm
Duplex Up to 25/25ppm, up to 22/22ppm
Auto duplex Speed A4 (mono/colour)
C287i, C227i
Up to 28/28ppm, up to 22/22ppm 1st copy out time A4 (mono/colour)
C287i, C227i
6.8sec / 8.4sec Warm-up time (mono/colour) Less than 20sec³ Copy resolution 600 x 600 dpi Gradation 256 gradations Multicopy 1-9,999 Original format A5–A3; Custom sizes Magnification 25-400% in 0.1% steps; Auto-zooming
-10%

Make: Xerox
Model: WC 7435
Technology: Laser (Dry Toner Powder)
Functions: Print, Copy, Color Scan
Condition: Refurbished
Printing Color: Mono & Color
Printing Size Max: A3
Print Speed in A4: 35 PPM
Print Resolutions (DPI): 1200 X 2400
PC Connectivity: USB Wire, LAN, Optional Wi-Fi
Paper weight Min /Max GSM: 55 to 280
Memory Ram: 1.5 GB
Hard Disk: 40 GB
Duplex Print: Yes
Duplex Scan DADF: Yes
Tray (Sheets): 3 X 550
Bypass (Sheet): 1 X 100
Trolley: Optional
Dimension (W X D X H) MM: 525 X 485 X 565
Machine Weight: Approx.:  140 kg
Power Consumption in Watt: Approx. 646 W
Cartridge Capacity: (@5% Coverage Area in A4): Black- 3000 Prints.
Color – 2000 Prints
Drum Cartridge Life: 12000 Prints
Printing Capacity Monthly: 105000 Prints.

-10%
EK-608 USB I/F kit USB keyboard connection
EK-609 USB I/F kit USB keyboard connection; Bluetooth
UK-221 Wireless LAN Wireless LAN and wireless LAN Access Point Mode
MK-735 Mount kit Installation kit for ID card reader
AU-102 Biometric authentication Finger vein scanner
AU-201S ID card reader

Various ID card technologies





System speed A4 Up to 22/22 ppm (mono/colour)
System speed A3 Up to 12/12 ppm (mono/colour)
Autoduplex speed A4 Up to 22/22 ppm (mono/colour)
1st page out time A4 6.8/8.4 sec. (mono/colour)
Warm-up time Approx. 20 sec. (mono/colour)*²
Imaging technology Laser
Panel size/resolution 7” / 800 x 480
System memory 6 GB
System storage(standard/optional) 8 GB microSD/256 GB SSD
Interface 10/100/1,000-Base-T Ethernet; USB 2.0; Wi-Fi 802.11 b/g/n/ac (optional)
Network protocols TCP/IP (IPv4 / IPv6); SMB; LPD; IPP; SNMP; HTTP(S); Bonjour
Automatic document feeder Up to 130 originals; A5-A3; 35-128 g/m²; RADF
Paper tray input (standard) 1x 525; A5-A4; custom sizes; 60-256 g/m²
1x 525; A5-A3; custom sizes; 60-256 g/m²
Paper tray input (optional) 1x 525 sheets; A5-A3; custom sizes; 60-256 g/m²
2x 525 sheets; A5-A3; custom sizes; 60-256 g/m²
1x 2,625 sheets; A4; custom sizes; 60-256 g/m²
Manual bypass 100 sheets; A6-A3; custom sizes,banner; 60-256 g/m²
Automatic duplexing A5-A3; 60-256 g/m²
Output capacity Max. 250 sheets
Toner lifetime Black up to 24,000 pages
CMY up to 24,000 pages
Power consumption 220-240 V / 50/60 Hz; Less than 1.50 kW
System dimension (W x D x H) 571 x 661 x 786 mm (without options)
System weight Approx. 70.0 kg (without options)
-10%

Model

Apeos C7070 / C6570 / C5570 / C4570 / C3570 / C3070

Basic Specifications / Copy Function











































































Type: Console
Memory capacity: 4 GB (Max: 4 GB)
Storage Device Capacity (The Storage Device Capacity is not totally available for customers): 128 GB
Colour Capability: Full colour
Scan Resolution: 600 x 600 dpi
Printing Resolution: 1200 x 2400 dpi (Text-Photo / Photo), 600 x 600 dpi (Text / Map)
Warm-up Time:
  • [Embedded Plug-ins / Custom Services] (Embedded Plug-ins / Custom Services are enabled as factory default. You can change the settings if needed)
  • When enabled: 30 seconds or less (23 degrees Celsius room temperature)
  • When disabled: 24 seconds or less (23 degrees Celsius room temperature)
Recovery Time (Recovery Time from Sleep mode):
  • C7070 & C6570: 13 seconds or less (23 degrees Celsius room temperature)
  • C5570 & C4570: 11 seconds or less (23 degrees Celsius room temperature)
  • C3570 & C3070: 5 seconds or less (23 degrees Celsius room temperature)
Original Size: Maximum of A3, 11 x 17", 297 x 432 mm for both Sheet and Book
Paper Size:
  • Max: SRA3 (320 x 450 mm), 12 x 18" (305 x 457 mm), A3 [12 x 19" (305 x 483 mm), 320 x 483 mm when using Bypass Tray]
  • Min: A5, Postcard (100 x 148 mm) [89 x 98 mm when using Bypass Tray]
  • Image loss width (Up to A3 size): Lead edge 4.0 mm, Trail edge 2.0 mm, Right/Left edge 2.0 mm
Paper Weight (It is recommended to use our recommended paper. Correct print output may not be possible depending on the requirement):
  • Paper Tray: 52 to 300 gsm
  • Bypass Tray: 52 to 300 gsm
First Copy Output Time:
  • B/W (A4 LEF / Monochrome priority mode): C7070: 3.3 sec.,  C6570: 3.3 sec.,  C5570: 3.7 sec., C4570: 4.4 sec., C3570: 4.9 sec.,  C3070: 4.9 sec.
  • Colour (A4 LEF / Colour priority mode): C7070: 4.1 sec.,  C6570: 4.1 sec.,  C5570: 5.2 sec., C4570: 5.7 sec., C3570: 6.7 sec.,  C3070: 6.7 sec.
Continuous Copy Speed (The speed may be reduced due to the image quality adjustment):
  • A4 LEF/ JIS B5 LEF: C7070: B/W: 70 ppm Colour:70 ppm, C6570: B/W: 65 ppm Colour:65 ppm, C5570: B/W: 55 ppm Colour:55 ppm, C4570: B/W: 45 ppm Colour:45 ppm, C3570: B/W: 35 ppm Colour:35 ppm, C3070: B/W: 30 ppm Colour:30 ppm
  • A4 / JIS B5: C7070: B/W: 50 ppm Colour:50 ppm, C6570: B/W: 47 ppm Colour:47 ppm, C5570: B/W: 40 ppm Colour: 40 ppm, C4570: B/W: 32 ppm Colour:32 ppm, C3570:,B/W: 27 ppm Colour:27 ppm, C3070: B/W: 23 ppm Colour:23 ppm
  • JIS B4: C7070: B/W: 41 ppm Colour:41 ppm, C6570: B/W: 38 ppm Colour:38 ppm, C5570: B/W: 32 ppm Colour:32 ppm, C4570: B/W: 26 ppm Colour:26 ppm B/W: 23 ppm, C3570: Colour:23 ppm, C3070: B/W: 20 ppm Colour:20 ppm
  • A3: C7070: B/W: 35 ppm Colour:35 ppm, C6570: B/W: 32 ppm Colour:32 ppm, C5570: B/W: 27 ppm Colour:27 ppm, C4570: B/W: 22 ppm Colour:22 ppm, C3570: B/W: 19 ppm Colour:19 ppm, C3070: B/W: 17 ppm Colour:17 ppm
Paper Tray Capacity (80 gsm paper):
  • Standard: 4 Tray Model: 520 sheets x 4-tray + Bypass Tray 90 sheets, Tandem Tray Model: 520 sheets x 2-tray + 840 sheets + 1230 sheets + Bypass Tray 90 sheets
  • Optional: High Capacity Feeder B1: 2000 sheets, High Capacity Feeder B2: 2940 sheets
  • Max: 4 Tray Model: 5110 sheets (4 Tray Model + High Capacity Feeder B2), Tandem Tray Model: 6140 sheets (Tandem Tray Model + High Capacity Feeder B2)
Output Tray Capacity (70 gsm paper): Upper Center: 250 sheets (A4 LEF), Lower Center: 250 sheets (A4 LEF)
Power Supply: AC220-240 V +/- 10 %, 10 A, 50/60 Hz common
Maximum Power Consumption:
  • C7070 & C6570: 2.2 kW (AC220 V +/- 10 %) 2.4 kW (AC240 V +/- 10 %) Sleep mode: 0.5 W (AC230 V) Ready mode: 106 W (AC230 V)
  • C5570 & C4570: 2.2 kW (AC220 V +/- 10 %) 2.4 kW (AC240 V +/- 10 %) Sleep mode: 0.5 W (AC230 V) Ready mode: 90 W (AC230 V)
  •  C3570 & C3070: 2.2 kW (AC220 V +/- 10 %) 2.4 kW (AC240 V +/- 10 %) Sleep mode: 0.5 W (AC230 V) Ready mode: 57 W (AC230 V)
Dimensions:
  • C7070 & C6570: W 658 x D 790 x H 1169 mm
  • C5570 & C4570: 4 Tray Model (DADF B2-PC): W 658 x D 720 x H 1119 mm 4 Tray Model (DADF C2-PC): W 658 x D 790 x H 1169 mm Tandem Tray Model (DADF B2-PC): W 658 x D 720 x H 1119 mm Tandem Tray Model (DADF C2-PC): W 658 x D 790 x H 1169 mm
  •  C3570 & C3070: W 633 x D 677 x H 1119 mm
Weight (Excluding Toner Cartridge):
  • C7070 & C6570: 156 kg
  • C5570 & C4570: 4 Tray Model (DADF B2-PC): 129 kg 4 Tray Model (DADF C2-PC): 146 kg Tandem Tray Model (DADF B2-PC): 136 kg Tandem Tray Model (DADF C2-PC): 156 kg
  •  C3570 & C3070: 124 kg

​Duplex Automatic Document Feeder B2-PC




Original Size / Paper Weight:
  • Max: A3, 11 x 17"; Min: A6 (The minimum custom size is 49 x 85 mm)
  • 38 to 128 gsm (In Duplex: 50 to 128 gsm) (Custom sizes from 49 x 85 mm to 55 x 91 mm are available from 38 to 209 gsm)
Capacity (70 gsm paper): 130 sheets
Scan Speed (The scanning speed varies depending on the documents):
  • Copy (A4 LEF, Simplex): C3570: B/W: 35 ppm Colour: 35 ppm, C3070: B/W: 30 ppm Colour: 30 ppm
Scan B/W: 80 ppm, Colour: 80 ppm (1 pass, 2 sided scanning: B/W 160 ppm, Colour 160 ppm) [Standard Document (A4 LEF), 200 dpi, to Folder.]

Duplex Automatic Document Feeder C2-PC






Original Size / Paper Weight:
  • Max: A3, 11 x 17"; Min: A6 (The minimum custom size is 84 x 139.7 mm)
  • 38 to 200 gsm (In Duplex: 50 to 200 gsm)
Capacity (70 gsm paper): 250 sheets
Scan Speed (The scanning speed varies depending on the documents):
  • Copy (A4 LEF, Simplex): C7070: B/W: 70 ppm Colour: 70 ppm, C6570: B/W: 65 ppm Colour: 65 ppm, C5570: B/W: 55 ppm Colour: 55 ppm, C4570: B/W: 45 ppm Colour: 45 ppm
  • Scan: B/W: 135 ppm Colour: 135 ppm (1 pass, 2 sided scanning: B/W 270 ppm, Colour 270 ppm) [Standard Document (A4 LEF), 200 dpi, to Folder.]

​Print Function
























Type: Built-in type
​Continuous Print Speed (The speed may be reduced due to the image quality adjustment. The printing speed may be reduced depending on the document.): Same as the Basic Specifications / Copy Function
Printing Resolution:
  • Standard: [PCL Driver] Standard: 1200 x 2400 dpi, High Quality: 1200 x 2400 dpi, High Resolution: 1200 x 1200 dpi
  • Optional: [Adobe® PostScript® 3TM Driver] High Speed (Standard): 600 x 600 dpi, High Quality: 1200 x 2400 dpi, High Resolution: 1200 x 1200 dpi
Page Description Language:
  • Standard: PCL5 / PCL6
  • Optional: Adobe® PostScript® 3TM
Supported Operating System (Please refer to our official website for the latest supported OS):
  • Standard: [PCL Driver] Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit)
  • Standard: [Mac OS X Driver] macOS 11 / 10.15 / 10.14 / 10.13 / 10.12
  • Optional: [Adobe® PostScript® 3TM Driver] Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) macOS 11 / 10.15 / 10.14 / 10.13 / 10.12
Interface:
  • Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0
  • Optional: Wireless LAN (IEEE 802.11 a / b / g / n / ac)

Scan Function (Optional)





Type: Colour Scanner
Scan Resolution: 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
Scan Speed: Same as the Scan Speed for the Duplex Automatic Document Feeder
Interface:
  • Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
  • Optional: Wireless LAN (IEEE 802.11 a / b / g / n / ac)
​Note: Installed for Model-CPS as standard.

​Fax Function (Optional)







Original Size: Max: A3, 11 x 17", Long document (Longest 600 mm)
Recording Paper Size: Max: A3, 11 x 17"; Min: A5
Transmission Time: 2 seconds and more but fewer than 3 seconds (When A4 size document with approximately 700 characters is transmitted in standard image-quality (8 x 3.85 lines/mm) and in high-speed mode (28.8 kbps or faster, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the contents of the document, the type of machine receiving the fax, and line condition.)
Transmission Mode: ITU-T G3
Applicable Lines: Telephone subscriber line, PBX, Fax communication (PSTN), Maximum 3 ports (No. of FAX lines is up to 3 ports. Port refers to number of channels for FAX.) (G3-3 ports)

​High Capacity Feeder B1 (Optional)

Paper Size: A4 LEF, Letter LEF, JIS B5 LEF
Paper Weight: 55 to 216 gsm
Feeding Capacity / Number of Tray (80 gsm paper): 2000 sheets x 1-tray
Dimensions: W 389 x D 614 x H 380 mm
​Weight: 29 kg

​High Capacity Feeder B2 (Optional)

Paper Size: A4 LEF, Letter LEF, JIS B5 LEF
Paper Weight: 55 to 216 gsm
Feeding Capacity / Number of Tray (80 gsm paper): 2940 sheets x 1-tray
Dimensions: W 476 x D 618 x H 433 mm
Weight: 31 kg

Side Tray

Paper Capacity (70 gsm paper): 100 sheets
​Dimensions: W 327 x D 414 x H 179 mm

​Finisher-A2 (Optional)




















Type: Sort (Offset available ([No Offset] is selected by factory default. The settings can be changed according to the customer's use situation.)) / Stack (Offset available ([No Offset] is selected by factory default. The settings can be changed according to the customer's use situation.))
Paper Size: Max: A3, 11 x 17"; Min: A5, Postcard (100 x 148 mm)
Paper Weight (Documents may not be printed correctly depending on usage conditions. (52 to 55 gsm)): 52 to 256 gsm
Paper Capacity (70 gsm paper):
  • Finishing Tray: [Without Stapling] A4 LEF: 500 sheets, JIS B4: 250 sheets, A3 or larger: 200 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets: 250 sheets (when large size sheets are smaller than A3) / 200 sheets (when large size sheets are A3 or larger) The same applies to when staple-free and stapled bindings are mixed or different stapling positions are mixed.): 250 sheets [With Stapling] 30 sets, or A4 LEF: 500 sheets, JIS B4: 250 sheets, A3 or larger: 200 sheets, Mixed Size Stacking*4: 250 sheets
Staple:
  • Capacity: A4: 50 sheets (90 gsm or less), JIS B4 or larger: 30 sheets (90 gsm or less)
  • Paper Size (Available staple positions vary depending on the paper size): Max: A3, 11 x 17"; Min: JIS B5 LEF
  • Paper Weight: 52 to 256 gsm
  • Position: Single stapling, Dual stapling
Dimensions / Weight: W 478 x D 461 x H 238 mm, 11 kg
Note: The unit cannot be installed on C7070 / C6570.

Finisher-B4 (Optional)


















































Type: Sort (Offset available (The offset feature is set to disabled by factory default. The setting can be changed as necessary.)(Outputs whose weight is 257 gsm and more or width is less than 210 mm are delivered without offset stacking.)) / Stack (Offset available (The offset feature is set to disabled by factory default. The setting can be changed as necessary.)(Outputs whose weight is 257 gsm and more or width is less than 210 mm are delivered without offset stacking.))
Paper Size (Paper in the sizes larger than A3 or 11 x 17" or smaller than A5 are delivered to the Centre Tray): Max: A3, 11 x 17"; Min: A5
Paper Weight (Documents may not be printed correctly depending on usage conditions. (52 to 55 gsm, 257 gsm and more)): 52 to 300 gsm
Paper Capacity (70 gsm paper):
  • [Without Stapling] A4: 2000 sheets, JIS B4 or larger: 1000 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets.): 300 sheets
  • [With Stapling] A4: 100 sets or 1000 sheets (75 sets or 750 sheets with dual stapling), JIS B4 or larger: 75 sets or 750 sheets
  • [With Booklet Finishing (The Booklet Finishing function requires the optional Booklet Maker Unit for Finisher-B. Make a crease allows you to fold easily. After a job with the Booklet Finishing function specified has been output, the next job may not be delivered until the sheets are removed from the output tray. Also, if larger size sheets are stacked on top of smaller size sheets after a job with the Booklet Finishing function specified has been run, the next job may not be delivered until the sheets are removed from the output tray.)] 50 sets or 600 sheets
  • [With Fold (The Booklet Finishing function requires the optional Booklet Maker Unit for Finisher-B. Make a crease allows you to fold easily. After a job with the Booklet Finishing function specified has been output, the next job may not be delivered until the sheets are removed from the output tray. Also, if larger size sheets are stacked on top of smaller size sheets after a job with the Booklet Finishing function specified has been run, the next job may not be delivered until the sheets are removed from the output tray.)] 500 sheets
Staple
  • Capacity 50 sheets (90 gsm or less)
  • Paper Size (Available staple positions vary depending on the paper size): Max: A3, 11 x 17”; Min: A5 LEF
  • Paper Weight: 52 to 256 gsm
  • Position Single stapling, Dual stapling
Punch (The Punch function requires the optional 2/4 Hole Punch Kit for Finisher-B or US 2/3 Hole Punch Kit for Finisher-B.):
  • Number of Holes: 2-hole / 4-hole punch or 2-hole / 3-hole punch (US Specifications)
  • Paper Size (Available number of punch holes varies depending on the paper size.): Max: A3, 11 x 17”; Min: A5 LEF
  • Paper Weight: 52 to 220 gsm
Booklet Finishing (The Booklet Finishing function requires the optional Booklet Maker Unit for Finisher-B. Make a crease allows you to fold easily. After a job with the Booklet Finishing function specified has been output, the next job may not be delivered until the sheets are removed from the output tray. Also, if larger size sheets are stacked on top of smaller size sheets after a job with the Booklet Finishing function specified has been run, the next job may not be delivered until the sheets are removed from the output tray.):
  • Capacity: Saddle Staple: 15 sheets; Single Fold: 5 sheets
  • Paper Size: Max: A3, 11 x 17”; Min: A4, Letter
  • Paper Weight: Saddle Staple: 64 to 80 gsm (Covers can be up to 220 gsm (Extra Heavyweight).), Single Fold: 64 to 105 gsm
Dimensions (Inner connector within the body is excluded.): W 592 x D 653 x H 1041 mm, With Booklet Maker Unit: W 592 x D 673 x H 1076 mm
Weight: 27 kg, With Booklet Maker Unit: 37 kg

Finisher-C4 / Finisher-C4 with Booklet Maker (Optional)























































Type:
  • Output Tray: Sort (Offset available) / Stack (Offset available)
  • Finishing Tray: Sort (Offset available) / Stack (Offset available)
  • Booklet Tray: Finisher-C4: −, Finisher-C4 with Booklet Maker: Sort / Stack
Paper Size:
  • Output Tray: Max: 12 x 19" (305 x 483 mm), A3; Min: A6, Postcard (100 x 148 mm)
  • Finishing Tray: Max: 12 x 19" (305 x 483 mm), A3; Min: A5 LEF
Paper Weight:
  • Output Tray: 52 to 300 gsm (52 to 55 gsm output paper may not be aligned properly depending on the paper type)
  • Finishing Tray: 52 to 300 gsm (52 to 55 gsm output paper may not be aligned properly depending on the paper type)
Paper Capacity (70 gsm paper):
  • Output Tray 500 sheets (A4)
  • Finishing Tray: Finisher-C4: [Without Stapling] A4: 3000 sheets, JIS B4 or larger: 1500 sheets, A5 LEF: 1000 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 300 sheets [With Stapling] A4: 200 sets or 3000 sheets JIS B4 or larger: 100 sets or 1500 sheets A5 LEF: 100 sets or 1000 sheets Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 70 sets or 200 sheets, Finisher-C4 with Booklet Maker: [Without Stapling] A4: 1500 sheets, JIS B4 or larger: 1500 sheets, A5 LEF: 1000 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 300 sheets [With Stapling] A4: 200 sets or 1500 sheets JIS B4 or larger: 100 sets or 1500 sheets A5 LEF: 100 sets or 1000 sheets Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 70 sets or 200 sheets
  • Booklet Tray: Finisher-C4: −, Finisher-C4 with Booklet Maker: 20 sets (When the output paper size is the same)
Staple:
  • Capacity: 50 sheets (90 gsm or less) (Up to 65 sheets can be stapled when the Finisher-C Staple Unit 65 Sheets is installed. However, depending on the paper type, incorrect stapling such as uneven edge alignment of sets may occur.)
  • Paper Size (Available staple positions vary depending on the paper size): Max: A3, 11 x 17"; Min: A5 LEF
  • Paper Weight: 52 to 300 gsm
  • Position: Single stapling, Dual stapling
Punch (Optional):
  • Number of Holes: 2-hole / 4-hole punch or 2-hole / 3-hole punch (US Specifications)
  • Paper Size (Available number of punch holes varies depending on the paper size): Max: A3, 11 x 17”; Min: A5 LEF
  • Paper Weight: 52 to 220 gsm
Booklet Finishing:
  • Capacity (The maximum number of sheets varies depending on the paper weight. Booklet may not be tightly closed depending on the size or type of the paper): Finisher-C4: −, Finisher-C4 with Booklet Maker: Saddle Staple: 20 sheets (90 gsm or less) Single Fold: 5 sheets (90 gsm or less)
  • Paper Size: Finisher-C4: −, Finisher-C4 with Booklet Maker: Max: SRA3 (320 x 450 mm), 12 x 18" (305 x 457 mm), A3; Min: JIS B5
  • Paper Weight: Finisher-C4: −, Finisher-C4 with Booklet Maker: Saddle Staple: 60 to 300 gsm Single Fold: 60 to 300 gsm
Dimensions (Inner connector within the body is excluded):
  • Finisher-C4: W 644 x D 692 x H 1054 mm When Folder Unit CD3 is installed: W 883 x D 692 x H 1054 mm
  • Finisher-C4 with Booklet Maker: W 649 x D 692 x H 1054 mm When Folder Unit CD3 is installed: W 888 x D 692 x H 1054 mm
Weight:
  • Finisher-C4: 36 kg When Folder Unit CD3 is installed: 88 kg
  • Finisher-C4 with Booklet Maker: 49 kg When Folder Unit CD3 is installed: 101 kg
Note: Transport Unit H4 is required.

Folder Unit CD3 (Optional)











Z Fold Half Sheet:
  • Paper Size: A3, 11 x 17", JIS B4
  • Paper Weight: 60 to 90 gsm
Tri-fold:
  • Paper Size: A4, Letter
  • Paper Weight: 60 to 90 gsm
  • Paper Capacity (70 gsm paper): 40 sheets
Power Supply (Power supply separate from the main unit is required) / Maximum Power Consumption: AC220-240 V +/- 10 %, 0.6 A, 50/60 Hz common, 144 W
Dimensions: W 232 x D 588 x H 991 mm
Weight: 52 kg
Note: Optional of Finisher-C4 / Finisher-C4 with Booklet Maker

Envelope Tray (Optional)






Paper Size: DL LEF, ISO-C4, ISO-C5 LEF, ISO-C6 LEF, Commercial #10 LEF, Monarch7.3/4 LEF Custom size: 241 x 372 mm to 90 x 98 mm
Paper Weight: Envelope: 75 to 90 gsm, Postcard: 106 to 220 gsm
Feeding Capacity / Number of Tray (Commercial #10 paper): 50 sheets x 1-tray
Dimensions:
  • [C7070 / C6570 / C5570 / C4570]: W 620 x D 566 x H 87 mm
  • [C3570 / C3070]: W 595 x D 566 x H 87 mm
Weight: 3 kg
-10%
  bizhub 554e bizhub 454e bizhub 364e bizhub 284e bizhub 224e
Type Desktop Printer / Copier / Scanner
Resolution Scan Main: 600dpi × Sub: 600dpi
Print 1,800 dpi (equivalent) × 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 2 GB/4 GB
HDD 250 GB
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ × 17″)
Output Size SRA3 to A5, B6S1, A6S1 tdick paper, Foolscap2 (8-1/2″ × 13-1/2″, 200 mm × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, 8″ × 13″), 8K, 16K, Long Lengtd Paper (210 × 457.3 mm to 297 × 1,200 mm)
Image Loss Max. 4.2 mm or less for top edge (5 mm for tdin paper),Max. 3.0 mm or less for bottom edge,Max. 3.0 mm or less for right/left edges* A loss of 4.2 mm each during printing.
Warm-Up Time3 (23°C, std. voltage)*tde time required to start printing when botd tde main power and sub-power switches are turned from OFF to ON. 22 sec. or less 25 sec. or less 20 sec. or less
*tde time required to start printing when tde main power switch is ON and tde sub-power switch is turned from OFF to ON. 22 sec. or less 25 sec. or less 20 sec. or less 18 sec. or less
First Copy Out Time4 4.1 sec. or less 4.6 sec. or less 5.3 sec. or less 5.9 sec. or less 6.9 sec .or less
Copy Speed (A4 Crosswise) 55 ppm 45 ppm 36 ppm 28 ppm 22 ppm
Copy Magnification Fixed Same Magnification 1:1± 0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengtdwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity(80g/m2) Tray 1 500 sheets (up to A3)
Tray 2 500 sheets (up to SRA3)
Multiple Bypass Tray 150 sheets (up to SRA3)
Max. Paper Capacity (80g/m2) 6,650 sheets 3,650 sheets
Paper Weight Tray 1 / 2 52 to 256 g/m2
Multiple Bypass Tray 60 to 300 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Type Non-Stack
Paper Size Widtd: 100 to 320 mm, Lengtd: 148 to 457.2 mm
Paper Weight 52 to 256 g/m2
Power Requirements AC220 to 240 V 9 A (50 to 60 Hz) AC220 to 240 V 8 A (50 to 60 Hz)
Max. Power Consumption 2.0 kW or less 1.58 kW or less
Dimensions [W] × [D] × [H] 615 × 685 × 898 mm (24-1/4″ × 27-1/2″ × 35-1/2″) 615 × 685 × 771 mm (24-1/4″ × 27-1/2″ × 30-1/2″)
Weight Approx. 93 kg (205-1/4 lb) Approx. 76.5 kg (168-3/4 lb)
Space Requirements5 [W] × [D] 937 × 1,246 mm (37″ × 49″) 937 × 1,214 mm (37″ × 47-3/4″)

*1 S: Short edge feed  2 Set by Customer engineer 3 May vary depending on the operating environment and usage.

* 4 A4 crosswise full size/using the first tray/scanning from the original glass surface.

* 5 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.

-10%
  • Supports integrated digital workflow processes
  • Latest security features
  • Stay up to date with RICOH Always Current Technology
  • Save costs by reduced energy consumption
  • Outer mainframe uses 50% post-consumer recycled materials.
  • 3 months warranty
  • 1yr additional warranty- Rs,18000+18%Gst (Optional).

The IM C2010 is equipped with the latest generation 10.1” Smart Operation Panel that provides improved responsiveness with capacitive touch panel technology. It also comes with more memory and is powered by an updated Android OS 10 with enhanced security features.

The MFP also supports a range of optional accessories, including paper input and finishing options, that allow customers to produce quick, professional results.
