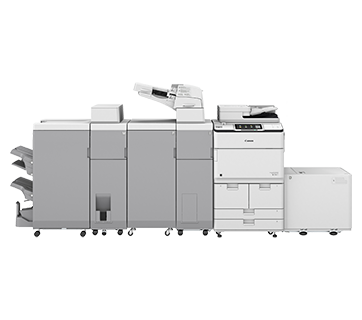

Machine Type

A3 Monochrome Laser Multifunctional

Core Function

Print, Copy, Scan, Send, Store and Optional Fax

Processor

1.75GHz Dual-Core Processor

Control Panel

Standard: 25.6cm (10.1in) TFT LCD WSVGA Color Touch panel
Optional: 26.4cm (10.4in) TFT LCD SVGA Color Upright Touch panel.

Memory

Standard: 3.0GB RAM

Hard Disk Drive

Standard^*1: 320GB (available disk space: 250GB)
Optional: 250GB, 1TB

Mirroring Hard Disk Drive

Optional

Interface Connection

Network
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy

Others
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80g/m²)

Standard: 4 200 sheets
100-sheet Multi-purpose tray x 1
1 500-sheet Paper Deck x 2
550-sheet Paper Cassette x 2

Maximum: 7 700 sheets (with POD Deck Lite-C1 or Paper Deck Unit-E1)

Paper Output Capacity (A4, 80g/m²)

250 sheets (with Copy Tray-R2).
Maximum: 5 000 sheets (High-Volume Stack mode "ON" with Staple Finisher-W1 PRO or Booklet Finisher-W1 Pro)

Finishing Capabilities

With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming

Supported Media Types

Multi-purpose tray:
Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Tab^*2

Paper Decks (Right/Left):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead

Paper Cassettes (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead, Tab^*2

Supported Media Sizes

Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5^*3, A5R, A6R^*4, B4, B5, B5R
Custom size: 100.0 x 148.0mm to 330.2 x 487.7mm
Free Size : 100.0 x 148.0mm to 330.2 x 487.7mm

Paper Decks (Right/Left):
Standard size: A4, B5

Paper Cassettes (Upper/Lower):
Standard size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R
Custom size: 139.7 x 182.0mm to 330.2 x 487.7mm

Supported Media Weights

Multi-purpose tray: 52 to 256g/m²
Paper Decks (Right/Left): 52 to 220g/m²
Paper Cassettes (Upper/Lower): 52 to 220g/m²
Duplex: 52 to 220g/m²

Warm-up Time

Quick Startup Mode: 4 seconds or less^*5
From Deep Sleep Mode: 60 seconds or less
From Power On: 60 seconds or less^*6

Dimensions (W x D x H)

Standard (including 1-pass DADF and flat touch panel): 670 x 770 x 1 185mm
With optional Upright touch panel:
1 170 x 770 x 1 252mm

Installation Space (W x D)

Basic: 1 533 x 1 353mm (with Multi-purpose tray/upper-right cover open + Front Cover open + Copy Tray)
Fully configured: 5 068 x 1 409mm (with POD Deck Lite-C1 + Document Insertion Unit-N1 + Multifunction Professional Puncher-B1 + Paper Folding Unit-J1 + Booklet Finisher-W1 Pro + Booklet Trimmer-F1 + Main unit Front Cover open)

Weight

Standard: approx. 221 kg^*7
With optional Upright touch panel: approx. 225 kg^*8

Print Speed

iR-ADV DX 8705:
up to 105 pages per minute (A4), up to 54 pages per minute (A3), up to 76 pages per minute (A4R), up to 105 pages per minute (A5R)

iR-ADV DX 8795:
up to 95 pages per minute (A4), up to 50 pages per minute (A3), up to 69 pages per minute (A4R), up to 95 pages per minute (A5R)

iR-ADV DX 8786:
up to 86pages per minute (A4), up to 44 pages per minute (A3), up to 63 pages per minute (A4R), up to 86 pages per minute (A5R)

Print Resolution (dpi)

1 200 x 1 200

Page Description Languages

Standard: UFR II (standard)
Optional: PCL 6, Adobe® PostScript® 3™

Direct Print

Supported file types: PDF, EPS, TIFF/JPEG and XPS

Printing from Mobile and Cloud

AirPrint, Mopria, Google Cloud Print, Canon Business Print, and uniFLOW Online

A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.
Please contact your sales representative for further information.

Fonts

PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WTJ / K / S / T^*9 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts^*10

Print Features

Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

Operating System

UFRII:
Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PCL:
Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019

PS:
Windows®7/ 8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PPD:
Windows®7/8.1/10, MAC OS X (10.9 or later)

As of July, 2019.

Copy Speed

iR-ADV DX 8705:
up to 105 pages per minute (A4), up to 54 pages per minute (A3), up to 76 pages per minute (A4R), up to 105 pages per minute (A5R)

iR-ADV DX 8795:
up to 95 pages per minute (A4), up to 50 pages per minute (A3), up to 69 pages per minute (A4R), up to 95 pages per minute (A5R)

iR-ADV DX 8786:
up to 86 pages per minute (A4), up to 44 pages per minute (A3), up to 63 pages per minute (A4R), up to 86 pages per minute (A5R)

First-Copy-Out Time (A4)

Approx. 2.7s or less

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 9 999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%

Copy Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample

Type

Single-pass Duplexing Automatic Document Feeder^*11 [2-sided to 2-sided (Automatic)]

Document Feeder Paper Capacity (80g/m²)

Up to 200 Sheets

Acceptable Originals and Weights

Platen: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight^*12:
1-sided scanning: 38 to 220g/m² (Black & White, Colour)
2-sided scanning: 38 to 220g/m² (Black & White, Colour)

Supported Media Sizes

Platen maximum scanning size: up to
297.0 x 431.8mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R
Custom size: 70.0 x 139.7mm to 304.8 x 431.8mm

Scan Speed (Black & White /Colour, A4)

1-sided Scanning:
135/135 (300 x 300dpi, send), 135/80 (600 x 600dpi, copy)

2-sided Scanning:
270/270 (300 x 300dpi, send), 165/90 (600 x 600dpi, copy)

Scan Resolution (dpi)

Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows®7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server 2016

Scan Method

Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online)

Destination

Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax

Address Book

LDAP (2000) / Local (1600) / Speed dial (200)

Send Resolution (dpi)

Push: up to 600 x 600
Pull: up to 600 x 600

Communication Protocol

File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3

File Format

Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

Universal Send Features

Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages

Maximum Number of Connection Lines

4

Modem Speed

Super G3: 33.6kbps
G3: 14.4kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)

Sending / Receiving Size

"Sending: A3, A4, A4R, A5^*13, A5R^*13, B4, B5^*14, B5R^*13
Receiving: A3, B4, A4, A4R, A5R , B5, B5R

Fax Memory

Up to 30 000 pages (2 000 jobs)

Speed Dials

Maximum 200

Group Dials / Destinations

Maximum 199 dials

Sequential Broadcast

Maximum 256 addresses

Memory Backup

Yes

Fax Features

Sender's Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log

Mail Box (Number supported)

100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 30 000 Pages (2 000 jobs) Stored

Advanced Box

Communication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB:64, WebDAV:3

Advanced Box Available Disc Space

Standard: 16GB
(With option: maximum 480GB)

Advanced Box Features

Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore
